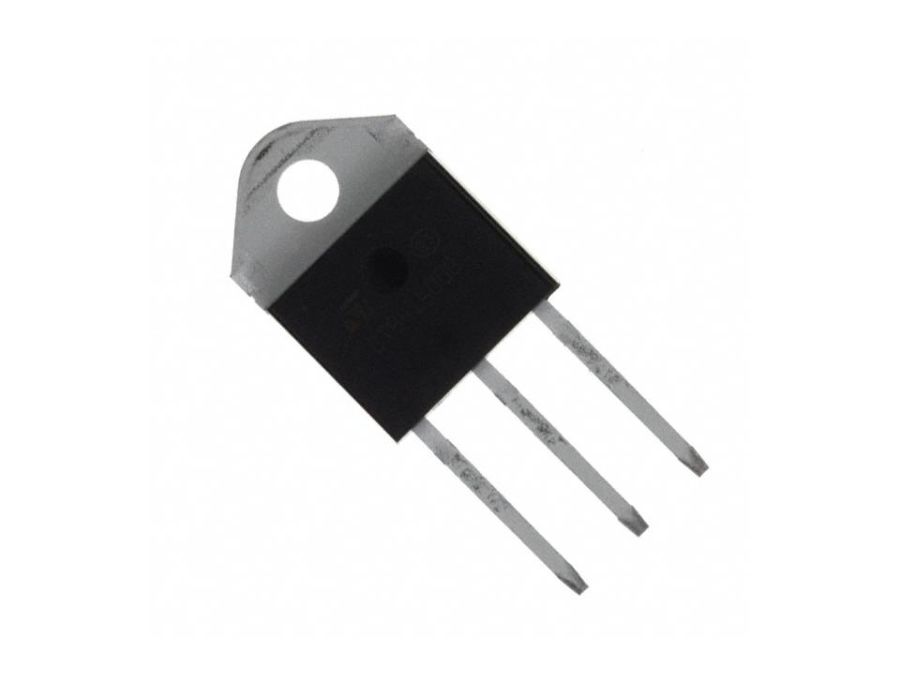

STTH1506TPI Diode - 15A / 600V (TOP3I)
Varenr:
H29843
EAN:
5705412298438
Tandem 600V HYPERFAST BOOST DIODE. En ultrahøjtydende diode bestående af to 300V dioder i serie. TURBOSWITCH H-diodeserien reducerer drastisk tab i den tilknyttede MOSFET, når den køres ved høj dIF/dt.
Tekniske detaljer:
- Producent (varemærke): STMicroelectronics
- Type diode: udbedring
- Montering: Printhul
- Maks. off-state spænding: 600V
- Belastningsstrøm: 15A
- Maks. belastningsstrøm: 26A
- Halvlederstruktur: enkelt diode
- Funktioner ved halvlederanordninger: ultrahurtig skift
- Slags pakke: rør
- Maks. fremadgående impulsstrøm: 130A
- Hus: TOP3I
- Maks. fremadspænding: 2,4V
- Kølelegemetykkelse: 1,45...1,55mm
- Omvendt restitutionstid: 16ns
Tandem 600V HYPERFAST BOOST DIODE. An ultra high performance diode composed of two 300V dice in series. The TURBOSWITCH H family drastically cuts losses in the associated MOSFET when run at high dIF/dt.
Specifications:
- Manufacturer: STMicroelectronics
- Type of diode: rectifying
- Mounting: THT
- Max. off-state voltage: 600V
- Load current: 15A
- Max. load current: 26A
- Semiconductor structure: single diode
- Features of semiconductor devices: ultrafast switching
- Kind of package: tube
- Max. forward impulse current: 130A
- Case: DOP3I
- Max. forward voltage: 2.4V
- Heatsink thickness: 1.45...1.55mm
- Reverse recovery time: 16ns
