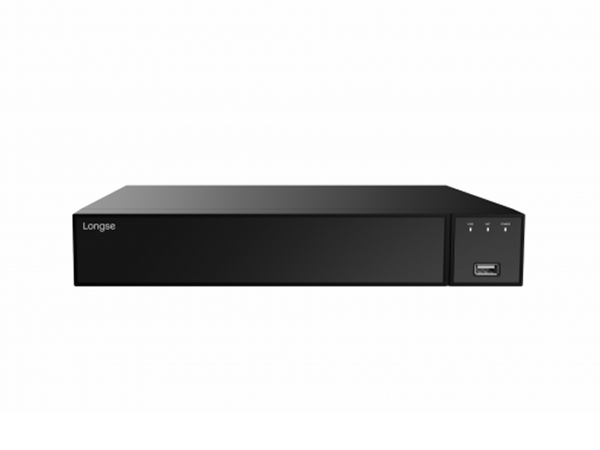

HD CCTV Hybridoptager - 8 kanal (TVI/CVI/AHD/Analog/IP) 8MP

Varenr: H30310

EAN: 5705412303101

CCTV hybrid optager til overvågningsoptagelse. Du kan tilslutte et hvilket som helst TVI / CVI / AHD / Analog og IP-kamera, og optageren registrerer automatisk typen af tilsluttede kameraer (vi anbefaler TVI-kameraer, se tilbehør). Understøtter ultrahøj optagelsesopløsning op til 8MP. Bare montere en standard 3,5" eller 2,5" SATA HDD (se tilbehør) og vælg dine optagelsespræferencer. Så har du en professionel og pålidelig CCTV-optagelsesløsning, som kan sende alarm push-beskeder til din smartphone, når en bevægelsesdetektering/alarm udløses.

Denne hybrid videooptager har alle de funktioner, der er nødvendige for professionel overvågning og hjemmeovervågning.

Egenskaber:

Understøtter AHD / CVI / TVI 2.0 / TVI 3.0 / IP og analog kameraindgang
undserstøtter op til 8 kan. HD eller 16 kan. IP kameraindgang
Op til HD 8MP optagelsesopløsning
Understøtter HD- og VGA-videoudgang
Understøtter menneskedetektion
Understøtter H.265/H.265+/H.264/H.264+ videokomprimering
Understøtter 1 SATA HDD op til 8 TB kapacitet

Tekniske detaljer:

System:
- Hovedprocessor: MC6650
- Operativsystem: Embedded LINUX
Video:
- Indgangssignaltype: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Netværk
- Indgangssignalkapacitet:
  - Standard: 8 x (AHD/TVI/CVI:8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI/CVI: 1080P/720P)
  - Analog: 960H + 4 x netværk (maks. 8MP)
  - Analog+netværk:
    - 6 x analog (8 MP) + 8 x netværk (maks. 8 MP)
    - 4 x analog (8MP)+10 x netværk (maks. 8MP)
    - 2 x analog (8MP)+12 x netværk (maks. 8MP)
- Indgangsstik: 8 CH BNC
- Udgang: 1 HDMI, 1 VGA, 1 CVBS
Lyd:
- Indgang: 6-kanals, RCA, understøtter AOC
- To-vejs lyd: Nej
- Udgang: 1 kanal, RCA
Alarm:
- Sensorindgang: 4 CH
- Udgang: 1 CH
- Bevægelsesdetektion: 12 kanaler (maks. 16 kanaler i ren netværkstilstand)
- Triggerhændelser: Optagelse, e-mail, skærmtip, buzzer, push-meddelelser (bevægelsesdetektion)
- E-mailalarm: Send billede til den udpegede e-mail
AI funktioner:
- Menneskedetektion: Ja
PTZ:
- Interface: RS485
- Protokol: Pelco-D, Pelco-P
- Baud Rate: 110~921600
- Adresse: 0~255
Skærmtilslutning:
- VGA-opløsning: 1920x1080P, 1280x1024, 1280x720, 1024x768
- HD-udgangsopløsning: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
- Display Split: 1/4/8/9/16 kanal
- Privatlivsmaskering: 3 rektangulære zoner (hvert kamera)
- OSD: Kameratitel, Tid, Videotab, Alarm, Bevægelsesdetektering, Optagelse
Optagelse:
- Videokomprimering: H.265/H.265+/H.264/H.264+
- Lydkomprimering: G.711U/G.711A
- Opløsning: 5MP (2592×1944), 8MP_LITE (1920×2160), 5MP_HALF (1296×1944), 4MP (2560×1440), 4MP_HALF (1280×1440), 3MP (2048×1536)(3MP (2048×154) 5) , 1080P (1920×1080), 720P (1280×720), 960H (960×480)
- Videokvalitet: Laveste/Lav/Almindelig/God/Bedre/Bedst
- Rekordrate:
  - Normal tilstand:
    - Analog: 8MP_LITE (1920×2160 4*8fps), 5MP (2592×1944 4*6fps), 5MP_HALF (1296×1944 4*10fps), 4MP (2560×1440 4*8fps), 40MP_4×1LF (4f8_0*1LF (s) ), 3MP (2048×1536 4*9fps), 3MP_Lite (1024×1536 4*18fps), 1080P (1920x1080 4*15fps), 720P (1280×720 4*25fps), 960H (1920x1080fps), 960H
  - Lite-tilstand:
    - Analog: 5MP_Lite (1296×1944 4*10fps), 4MP_Lite (1280×1440 4*15fps), 3MP_Lite (1024×1536 4*18fps), 1080N (960x1080 4*720fps) 960H (960×480 4*25fps)
    - Ren IP (H.265): PAL: 5MP@8×25fps, 4MP@12x25fps, 3MP@12×25fps,1080P@16×25fps, 960P@16×25fps, 720P@16×25fps, D1fps16×2
- Optagetilstand: Manuel\Timer\Bevægelsesdetektion
Afspilning og sikkerhedskopiering:
- Afkodningsevne: 2CH 1080P@30fps
- Synkroniser afspilning:
  - Normal tilstand:
    - Ren analog: 4CH 5M@6fps, 3CH 8M_Lite@8fps, 4CH 4M@8fps, 4CH 3M@9fps, 3CH 1080p@15fps
    - Blandingstilstand: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
    - Ren IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
  - Lite-tilstand:
    - Ren analog: 4CH 5M_LITE@10fps,CH 4M_LITE@15fps,3M_LITE@18fps,4CH 1080N@25fps
    - Blandingstilstand: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
    - Ren IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
- Fjernafspilning: 4 kanal / 1 kanal
- Søgetilstand: ALLE, Kanal, Manuel, Tid, Dato, Bevægelsesdetektering
- Afspilningsfunktioner: Afspil, Pause, Stop, Hurtig afspilning, Langsom afspilning, Spol tilbage, Enkelt billede frem/tilbage, Digital Zoom, Fuld skærm
- Smart Phone-afspilning: 4-kanals
- Backup-tilstand: USB-enhed (med format FAT 32 ) / Netværk / FTP
Netværk:
- Interface: 1 x RJ45 10M/100M Adaptive Ethernet Interface
- Netværksfunktioner: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
- DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
- Webbrowser: Edge, IE8-11, Google Chrome, Firefox, Safari
- CMS-software: Understøtter Windows 7/8/10/11 og Mac OS
- Ekstra stream: CIF/D1 (1~25fps)
- Smarttelefon: iPhone, iPad, Android, Android pad
Harddisk driver:
- Interface Type1 SATA-grænseflade
- Kapacitet: 1 x SATA-harddisk (2,5"/3,5" SATA, op til 8TB, se tilbehør)
Generel:
- Sprogunderstøttelse: Engelsk, forenklet kinesisk, traditionel kinesisk, polsk, tjekkisk, russisk, thai, hebraisk, arabisk, bulgarsk, japansk, tysk, fransk, portugisisk, tyrkisk, spansk, italiensk, ungarsk, rumænsk, koreansk, hollandsk, græsk, vietnamesisk
- UTC-kontrol: Ja
- USB-interface: 2 x USB 2.0
- Strømforsyning: 12Vdc / 2A (adapter inkluderet)
- Operationel temperatur: -10...55°C
- Operationel luftfugtighed; 10...90 %
- Størrelse (B×D×H): 260x215x43mm
- Vægt: 860g (uden harddisk)

CCTV hybrid recorder for surveillance recording. You can connect any TVI / CVI / AHD / Analog and IP camera, and the recorder automatically detects the type of cameras connected (we recommend TVI cameras, see accessories). Supports Ultra high recording resolution up to 8MP. Just mount a standard 3.5" or 2,5" SATA HDD (see accessories) and select your recording preferences. Then you will have a professional and reliable CCTV recording solution which can send alarm push-messages to your smartphone when a (motion detection) alarm is triggered.

This hybrid video recorder has all the functions needed for professional and home surveillance.

Features:

Support AHD / CVI / TVI 2.0 / TVI 3.0 / IP and Analog Camera Input
Support Max. 8CH HD or 16CH IP Camera Input
Up to HD 8MP and IP 5MP Resolution Recording
Support HD and VGA Video Output
Supports human detection
Support H.265/H.265+/H.264/H.264+ Video Compression
Support 1 SATA HDD up to 8TB capacity

Specifications:

System:
- Main Processor: MC6650
- Operating System: Embedded LINUX
Video:
- Input signal type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
- Input signal capacity:
  - Default: 8 x (AHD/TVI/CVI:8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI/CVI: 1080P/720P)
  - Analog: 960H + 4 x network(Max 8MP)
  - Analog+Network:
    - 6 x analog(8MP) + 8 x network(Max 8MP)
    - 4 x analog(8MP)+10 x network(Max 8MP)
    - 2 x analog(8MP)+12 x network(Max 8MP)
- Input connectors: 8 CH BNC
- Output: 1 HDMI, 1 VGA, 1 CVBS
Audio:
- Input: 6 Channel, RCA, Support AOC
- Two-way Audio: No
- Output: 1 Channel, RCA
Alarm:
- Sensor Input: 4 CH
- Output: 1 CH
- Motion Detection: 12 channel (max 16 channel in pure network mode)
- Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications (motion detection)
- Email Alarm: Send Image to The Designated E-mail
AI function:
- Human Detection: Yes
- PTZ:
  - Interface: RS485
  - Protocol: Pelco-D, Pelco-P
  - Baud Rate: 110~921600
  - Address: 0~255
- Display:
  - VGA resolution: 1920x1080P, 1280x1024 , 1280x720,1024x768
  - HD output resolution: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
  - Display Split: 1/4/8/9/16 channel
  - Privacy Masking: 3 rectangular zones (each camera)
  - OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
- Recording:
  - Video Compression: H.265/H.265+/H.264/H.264+
  - Audio Compression: G.711U/G.711A
  - Resolution: 5MP(2592×1944), 8MP_LITE(1920×2160), 5MP_HALF(1296×1944), 4MP(2560×1440), 4MP_HALF(1280×1440), 3MP(2048×1536), 3MP_Lite(1024×1536), 1080P(1920×1080), 720P(1280×720), 960H(960×480)
  - Video Quality: Lowest/Low/Ordinary/Good/Better/Best
  - Record Rate:
    - Normal Mode:
      - Analog: 8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps), 5MP_HALF(1296×1944 4*10fps), 4MP(2560×1440 4*8fps), 4MP_HALF(1280×1440 4*15fps), 3MP(2048×1536 4*9fps), 3MP_Lite(1024×1536 4*18fps), 1080P(1920x1080 4*15fps), 720P(1280×720 4*25fps), 960H(960x480 4*25fps)
    - Lite Mode:
      - Analog: 5MP_Lite(1296×1944 4*10fps), 4MP_Lite(1280×1440 4*15fps), 3MP_Lite(1024×1536 4*18fps), 1080N(960x1080 4*25fps), 720P(1280×720 4*25fps), 960H(960×480 4*25fps)
      - Pure IP(H.265): PAL: 5MP@8×25fps, 4MP@12x25fps, 3MP@12×25fps,1080P@16×25fps, 960P@16×25fps, 720P@16×25fps, D1@16×25fps
  - Record Mode: Manual\Timer\Motion Detection
- Playback & Backup:
  - Decode Capability: 2CH 1080P@30fps
  - Sync Playback:
    - Normal Mode:
      - Pure Analog: 4CH 5M@6fps, 3CH 8M_Lite@8fps, 4CH 4M@8fps, 4CH 3M@9fps, 3CH 1080p@15fps
      - Mix Mode: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
      - Pure IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
    - Lite Mode:
      - Pure Analog: 4CH 5M_LITE@10fps,CH 4M_LITE@15fps,3M_LITE@18fps,4CH 1080N@25fps
      - Mix Mode: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
      - Pure IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
  - Remote Playback: 4 Channel / 1 Channel
  - Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
  - Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
  - Smart Phone Playback: 4 Channel
  - Backup Mode: USB Device (with fomat FAT 32 ) / Network / FTP
- Network:
  - Interface: 1 x RJ45 10M/100M Adaptive Ethernet Interface
  - Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
  - DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
  - Web Browser: Edge, IE8-11, Google Chrome, Firefox, Safari
  - CMS Software: Support Windows 7/ 8/ 10/ 11 and Mac OS
  - Extra Stream: CIF/D1(1~25fps)
  - Smart Phone: iPhone, iPad, Android, Android pad
- Hard Disk Driver:
  - Interface Type1 SATA Interface
  - Capacity: 1 x SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB, see accessories)
- General:
  - Language: English, Simplified Chinese,Traditional Chinese, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese
  - UTC Control: Yes
  - USB Interface: 2 x USB 2.0
  - Power supply: 12VDC / 2A (adapter included)
  - Operating temperature: -10...55°C
  - Operating humidity; 10...90%
  - Dimensions (W×D×H): 260 x 215 x 43mm
  - Weight: 860g
