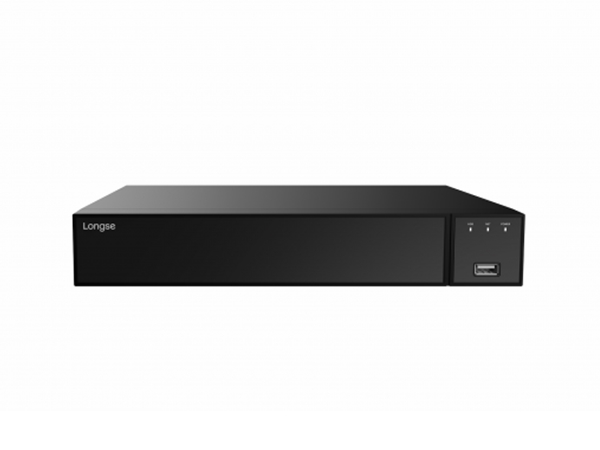

HD CCTV Hybridoptager - 16 kanal (TVI/CVI/AHD/Analog/IP) 8MP

HD CCTV Hybridoptager - 16 kanal (TVI/CVI/AHD/Analog/IP) 8MP

Varenr: H30311

EAN: 5705412303118

CCTV hybrid optager til overvågningsoptagelse. Du kan tilslutte et hvilket som helst TVI / CVI / AHD / Analog og IP-kamera, og optageren registrerer automatisk typen af tilsluttede kameraer (vi anbefaler TVI-kameraer, se tilbehør). Understøtter ultrahøj optagelsesopløsning op til 8MP. Bare montere en standard 3,5" eller 2,5" SATA HDD (se tilbehør) og vælg dine optagelsespræferencer. Så har du en professionel og pålidelig CCTV-optagelsesløsning, som kan sende alarm push-beskeder til din smartphone, når en bevægelsesdetektering/alarm udløses.

Denne hybrid videooptager har alle de funktioner, der er nødvendige for professionel overvågning og hjemmeovervågning.

Egenskaber:

Understøtter AHD / CVI / TVI 2.0 / TVI 3.0 / IP og analog kameraindgang
Understøtter op til 16 kanal HD eller 32 kanal IP kameraindgang
Understøtter op til HD 8MP optagelsesopløsning
Understøtter HD- og VGA-videoudgang
Understøtter menneskedetektion
Understøtter H.265/H.265+/H.264/H.264+ videokomprimering
Understøtter 2 SATA HDD op til 16 TB kapacitet

Tekniske detaljer:

System:
- Hovedprocessor: MC6650
- Operativsystem: Embedded LINUX
Video:
- Indgangssignaltype: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Netværk
- Indgangssignalkapacitet:
  - Default: 16 x (AHD/TVI/CVI:8MP; TVI/AHD:5MP; AHD/TVI/CVI:4MP; AHD/TVI/CVI:1080P/720P, 960H + 4 x network(Max 8MP)
  - Analog+Netværk:
    - 2 x analog(8MP) + 22 x netværk(Max 8MP)
    - 4 x analog(8MP)+20 x netværk(Max 8MP)
    - 6 x analog(8MP)+18 x netværk(Max 8MP)
    - 8 x analog(8MP)+16 x netværk(Max 8MP)
    - 10 x analog(8MP)+14 x netværk(Max 8MP)
    - 12 x analog(8MP)+12 x netværk(Max 8MP)
    - 14 x analog(8MP)+10 x netværk(Max 8MP)
    - 16 x analog(8MP)+8 x netværk(Max 8MP)
  - Netværk: 32 x 8MP/5MP/4MP/3MP/1080P/960P/720P (total indgående båndbredde ?160M)
- Indgangsstik: 8 kanal BNC
- Udgang: 1 HDMI, 1 VGA, 1 CVBS
Lyd:
- Indgang: 6-kanals, RCA, understøtter AOC
- To-vejs lyd: Nej
- Udgang: 1 kanal, RCA
Alarm:
- Sensorindgang: 4 kan.
- Udgang: 1 kan.
- Bevægelsesdetektion: 12 kanaler (maks. 16 kanaler i ren netværkstilstand)
- Triggerhændelser: Optagelse, e-mail, skærmtip, buzzer, push-meddelelser (bevægelsesdetektion)
- E-mailalarm: Send billede til den udpegede e-mail
AI funktioner:
- Menneske detektion: Ja
- PTZ:
  - Interface: RS485
  - Protokol: Pelco-D, Pelco-P
  - Baud Rate: 110~921600
  - Adresse: 0~255
- Skærmtilslutning:
  - VGA-opløsning: 1920x1080P, 1280x1024, 1280x720, 1024x768
  - HD-udgangsopløsning: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
  - Display Split: 1/4/8/9/16 kanal
  - Privatlivsmaskering: 3 rektangulære zoner (hvert kamera)
  - OSD: Kameratitel, Tid, Videotab, Alarm, Bevægelsesdetektering, Optagelse
- Optagelse:
  - Videokomprimering: H.265/H.265+/H.264/H.264+
  - Lydkomprimering: G.711U/G.711A
  - Opløsning: 5MP (2592×1944), 8MP_LITE (1920×2160), 5MP_HALF (1296×1944), 4MP (2560×1440), 4MP_HALF (1280×1440), 3MP (2048×1536)(3MP (2048×154) 5) , 1080P (1920×1080), 720P (1280×720), 960H (960×480)
  - Videokvalitet: Laveste/Lav/Almindelig/God/Bedre/Bedst
  - Rekordrate:
    - Normal tilstand:
      - Analog: 8MP_LITE (1920×2160 4*8fps), 5MP (2592×1944 4*6fps), 5MP_HALF (1296×1944 4*10fps), 4MP (2560×1440 4*8fps), 40MP_4×1LF (4f8_0*1LF (s) ), 3MP (2048×1536 4*9fps), 3MP_Lite (1024×1536 4*18fps), 1080P (1920x1080 4*15fps), 720P (1280×720 4*25fps), 960H (1920x1080fps), 960H
    - Lite-tilstand:
      - Analog: 5MP_Lite (1296×1944 4*10fps), 4MP_Lite (1280×1440 4*15fps), 3MP_Lite (1024×1536 4*18fps), 1080N (960x1080 4*720fps) 960H (960×480 4*25fps)
      - Ren IP (H.265): PAL: 5MP@8×25fps, 4MP@12x25fps, 3MP@12×25fps,1080P@16×25fps, 960P@16×25fps, 720P@16×25fps, D1fps16×2
  - Optagetilstand: Manuel\Timer\Bevægelsesdetektion
- Afspilning og sikkerhedskopiering:
  - Afkodningsevne: 2CH 1080P@30fps
  - Synkroniser afspilning:
    - Normal tilstand:
      - Ren analog: 4CH 5M@6fps, 3CH 8M_Lite@8fps, 4CH 4M@8fps, 4CH 3M@9fps, 3CH 1080p@15fps
      - Blandingstilstand: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
      - Ren IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
    - Lite-tilstand:
      - Ren analog: 4CH 5M_LITE@10fps,CH 4M_LITE@15fps,3M_LITE@18fps,4CH 1080N@25fps
      - Blandingstilstand: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
      - Ren IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
  - Fjernafspilning: 4 kanal / 1 kanal
  - Søgetilstand: ALLE, Kanal, Manuel, Tid, Dato, Bevægelsesdetektering
  - Afspilningsfunktioner: Afspil, Pause, Stop, Hurtig afspilning, Langsom afspilning, Spol tilbage, Enkelt billede frem/tilbage, Digital Zoom, Fuld skærm
  - Smart Phone-afspilning: 4-kanals
  - Backup-tilstand: USB-enhed (med format FAT 32 ) / Netværk / FTP
- Netværk:
  - Interface: 1 x RJ45 10M/100M Adaptive Ethernet Interface
  - Netværksfunktioner: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
  - DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
  - Webbrowser: Edge, IE8-11, Google Chrome, Firefox, Safari
  - CMS-software: Understøtter Windows 7/8/10/11 og Mac OS
  - Ekstra stream: CIF/D1 (1~25fps)
  - Smarttelefon: iPhone, iPad, Android, Android pad
- Harddisk driver:
  - Interface Type: 2 SATA-grænseflade
  - Kapacitet: 2 x SATA-harddisk (2,5"/3,5" SATA, op til 16TB, se tilbehør)
- Generel:
  - Sprogunderstøttelse: Engelsk, forenklet kinesisk, traditionel kinesisk, polsk, tjekkisk, russisk, thai, hebraisk, arabisk, bulgarsk, japansk, tysk, fransk, portugisisk, tyrkisk, spansk, italiensk, ungarsk, rumænsk, koreansk, hollandsk, græsk, vietnamesisk
  - UTC-kontrol: Ja
  - USB-interface: 2 x USB 2.0
  - Strømforsyning: 12Vdc / 2A (adapter inkluderet)
  - Operationel temperatur: -10...55°C
  - Operationel luftfugtighed; 10...90 %
  - Størrelse (B×D×H): 260x215x43mm
  - Vægt: 2kg (uden HDD)

CCTV hybrid recorder for surveillance recording. You can connect any TVI / CVI / AHD / Analog and IP camera, and the recorder automatically detects the type of cameras connected (we recommend TVI cameras, see accessories). Supports Ultra high recording resolution up to 8MP. Just mount a standard 3.5" or 2,5" SATA HDD (see accessories) and select your recording preferences. Then you will have a professional and reliable CCTV recording solution which can send alarm push-messages to your smartphone when a (motion detection) alarm is triggered.

This hybrid video recorder has all the functions needed for professional and home surveillance.

Features:

Support AHD / CVI / TVI 2.0 / TVI 3.0 / IP and Analog Camera Input
Support Max. 16CH HD or 32CH IP camera Input
Up to 8MP Resolution Recording
Support HD and VGA Video Output
Supports human detection
Support H.265/H.265+/H.264/H.264+ Video Compression
Support 2 SATA HDD up to 16TB capacity

Specifications:

System:
- Main Processor: MC6680
- Operating System: Embedded LINUX
Video:
- Input signal type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
- Input signal capacity:
  - Default: 16 x (AHD/TVI/CVI:8MP; TVI/AHD:5MP; AHD/TVI/CVI:4MP; AHD/TVI/CVI:1080P/720P, 960H + 4 x network(Max 8MP)
  - Analog+Network:
    - 2 x analog(8MP) + 22 x network(Max 8MP)
    - 4 x analog(8MP)+20 x network(Max 8MP)
    - 6 x analog(8MP)+18 x network(Max 8MP)
    - 8 x analog(8MP)+16 x network(Max 8MP)
    - 10 x analog(8MP)+14 x network(Max 8MP)
    - 12 x analog(8MP)+12 x network(Max 8MP)
    - 14 x analog(8MP)+10 x network(Max 8MP)
    - 16 x analog(8MP)+8 x network(Max 8MP)
  - Network: 32 x 8MP/5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ?160M)

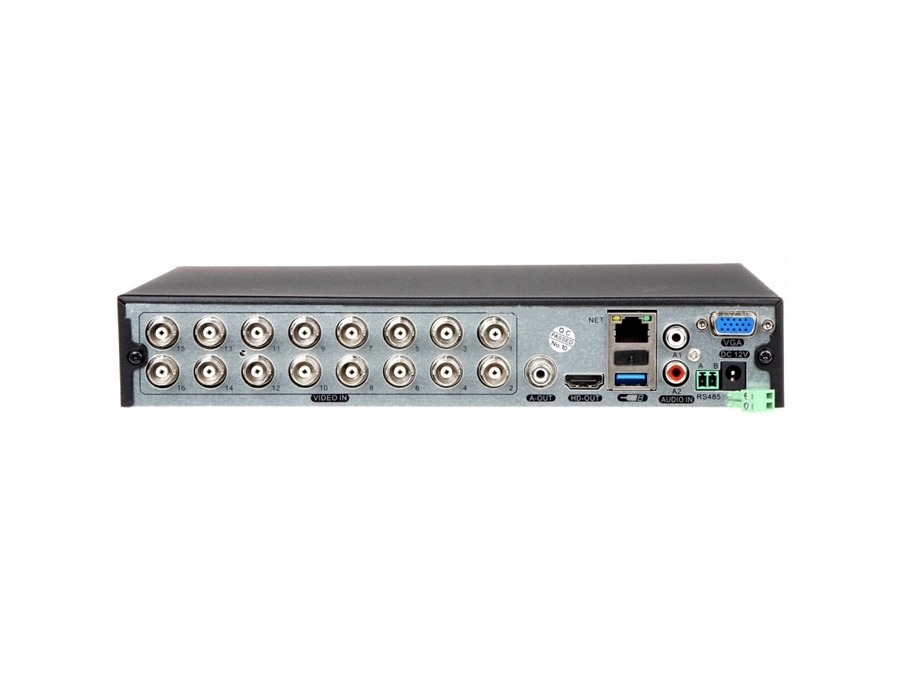

- Input connectors: 16 CH BNC
- Output: 1 HDMI, 1 VGA, 1 CVBS
Audio:
- Input: 6 Channel, RCA, Support AOC
- Two-way Audio: No
- Output: 1 Channel, RCA
Alarm:
- Sensor Input: 4 CH
- Output: 1 CH
- Motion Detection: 16 channel
- Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications (motion detection)
- Email Alarm: Send Image to The Designated E-mail
AI function:
- Human Detection: Yes
PTZ:
- Interface: RS485
- Protocol: Pelco-D, Pelco-P
- Baud Rate: 110~921600
- Address: 0~255
Display:
- VGA resolution: 1920x1080P, 1280x1024 , 1280x720,1024x768
- HD output resolution: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
- Display Split: 1/4/8/9/16/25/36 channel
- Privacy Masking: 3 rectangular zones (each camera)
- OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording:
- Video Compression: H.265/H.265+/H.264/H.264+
- Audio Compression: G.711U/G.711A
- Resolution: 5MP(2592×1944), 8MP_LITE(1920×2160), 5MP_HALF(1296×1944), 4MP(2560×1440), 4MP_HALF(1280×1440), 3MP(2048×1536), 3MP_Lite(1024×1536), 1080P(1920×1080), 720P(1280×720), 960H(960×480)
- Video Quality: Lowest/Low/Ordinary/Good/Better/Best
- Record Rate:
  - Normal Mode:
    - Analog: 8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps), 5MP_HALF(1296×1944 4*10fps), 4MP(2560×1440 4*8fps), 4MP_HALF(1280×1440 4*15fps), 3MP(2048×1536 4*9fps), 3MP_Lite(1024×1536 4*18fps), 1080P(1920x1080 4*15fps), 720P(1280×720 4*25fps), 960H(960x480 4*25fps)
  - Lite Mode:
    - Analog: 5MP_Lite(1296×1944 4*10fps), 4MP_Lite(1280×1440 4*15fps), 3MP_Lite(1024×1536 4*18fps), 1080N(960x1080 4*25fps), 720P(1280×720 4*25fps), 960H(960×480 4*25fps)
    - Pure IP(H.265): PAL: 5MP@8×25fps, 4MP@12x25fps, 3MP@12×25fps,1080P@16×25fps, 960P@16×25fps, 720P@16×25fps, D1@16×25fps
- Record Mode: Manual\Timer\Motion Detection
Playback & Backup:
- Decode Capability: 2CH 1080P@30fps
- Sync Playback:
  - Normal Mode:
    - Pure Analog: 4CH 5M@6fps, 3CH 8M_Lite@8fps, 4CH 4M@8fps, 4CH 3M@9fps, 3CH 1080p@15fps
    - Mix Mode: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
    - Pure IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
  - Lite Mode:
    - Pure Analog: 4CH 5M_LITE@10fps,CH 4M_LITE@15fps,3M_LITE@18fps,4CH 1080N@25fps
    - Mix Mode: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
    - Pure IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
- Remote Playback: 4 Channel / 1 Channel
- Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
- Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
- Smart Phone Playback: 4 Channel
- Backup Mode: USB Device (with fomat FAT 32 ) / Network / FTP
Network:
- Interface: 1 x RJ45 10M/100M Adaptive Ethernet Interface
- Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
- DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
- Web Browser: Edge, IE8-11, Google Chrome, Firefox, Safari
- CMS Software: Support Windows 7/ 8/ 10/ 11 and Mac OS
- Extra Stream: CIF/D1(1~25fps)
- Smart Phone: iPhone, iPad, Android, Android pad
Hard Disk Driver:
- Interface Type: 2 SATA Interface
- Capacity: 2 x SATA Hard Disk (2.5"/3.5" SATA, Up to 16TB, see accessories)
General:
- Language: English, Simplified Chinese,Traditional Chinese, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese
- UTC Control: Yes
- USB Interface: 2 x USB 2.0
- Power supply: 12VDC / 2A (adapter included)
- Operating temperature: -10...55°C
- Operating humidity; 10...90%
- Dimensions (W×D×H): 260 x 215 x 43mm
- Weight: 2 kg (without HDD)
