ProSwitch - Stålkontakt, 1P ON-ON Ø16mm
Varenr:
H30823
EAN:
5410329380618
Tekniske detaljer:

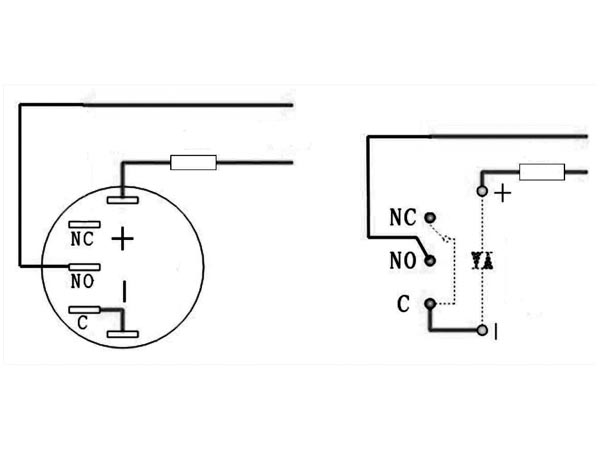

- Kontaktkonfiguration: SPDT - 1NO 1NC
- Skiftemetode: ON-ON
- Operationel temperatur: -25°C ~ + 55°C
- Operationel fugtighed: 45 ~85% RF
- Isolationsmodstand: >100 Mohm
- Kontaktmodstand: <50 Mohm
- Kontaktmateriale: Sølvlegering
- Mekanisk levetid: 1.000.000 cyklusser
- Elektrisk levetid: 50 000 cyklusser
- Dielektrisk styrke:
- Mellem terminaler med samme pol: 1000VAC
- Mellem terminaler med forskellige poler: 2000VAC
- Husmateriale: Forniklet messing
- Tryk: 5,5N
- IP-klassificering: IP40
- Maks. spænding / strøm:
- 24Vdc / 1A
- 230VAC / 0,5A

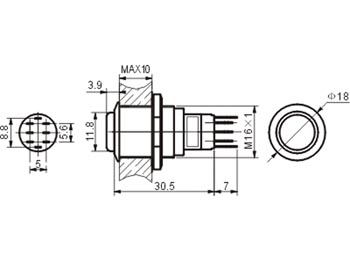

- Monteringshul: Ø16mm
Specifications:
- Contacts configuration: SPDT - 1NO 1NC
- Switching method: ON-ON
- Operating temperature: -25°C ~ +55°C
- Operating humidity: 45 ~ 85% RH
- Insulation resistance: > 100M ohms
- Contact resistance: < 50M ohms
- Contact material: silver alloy
- Mechanical life: 1.000.000 cycles
- Electrical life: 50 000 cycles
- Dielectric strength:
- Between terminals of the same pole: 1000VAC
- Between terminals of different poles: 2000VAC
- Body material: nickel-plated brass
- Pressure: 5,5N
- IP-rating: IP40
- Max. voltage/current:
- 24VDC / 1A
- 230VAC / 0,5A
- Mounting hole: Ø16mm
