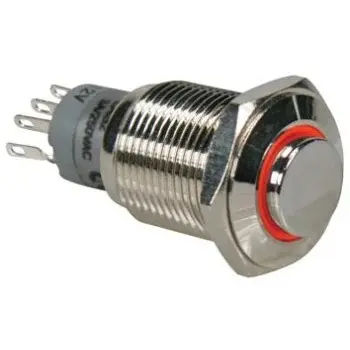

ProSwitch - Stålkontakt, 1P ON-ON Ø16mm ORANGE ring
Varenr:
H30826
EAN:
5410329380755
Vandalsikret trykkontakt med belysning via 12V LED. Levetid: >40.000 timer.
Tekniske detaljer
- Kontaktkonfiguration: SPDT 1NO 1NC
- Skiftemetode: ON-ON
- Lys farve: Orange
- Operationel temperatur: -20...70°C
- operationel luftfugtighed: 45...85% RF
- Isolationsmodstand: >1000 Mohm
- Kontaktmodstand: <50 Mohm
- Kontaktmateriale: Sølvlegering
- Mekanisk levetid: 1.000.000 cyklusser
- Elektrisk levetid: 50.000 cyklusser
- Dielektrisk styrke:
- Mellem terminaler af samme pol: 1000VAC
- Mellem terminaler af forskellige poler: 2000VAC
- Mellem terminal og lampeterminal: 1500VAC
- Husmateriale: Forniklet messing
- IP-rating: IP40 / IP65
- Maks. spænding / strøm:
- 24Vdc / 1A
- 230VAC / 0,5A

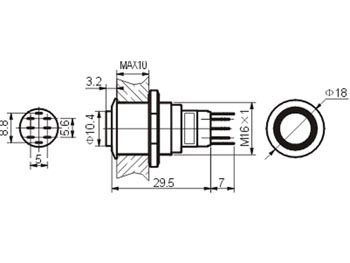

- Monteringshul: Ø16mm
Vandal prof metal switch with illumination by means of 12V LED lighting. Lifetime: > 40.000h.
Specifications:
- Contacts configuration: SPDT 1NO 1NC
- Switching method: ON-ON
- Light colour: Orange
- Operating temperature: -20...70°C
- Operating humidity: 45...85% RH
- Insulation resistance: > 1000 Mohms
- Contact resistance: < 50 Mohms
- Contact material: silver alloy
- Mechanical life: 1 000 000 cycles
- Electrical life: 50 000 cycles
- Dielectric strength:
- Between terminals of the same pole: 1000VAC
- Between terminal of different poles: 2000VAC
- Between terminal and lamp terminal: 1500VAC
- Body material: nickel-plated brass
- IP-rating: IP40/IP65
- Max. voltage / current:
- 24VDC / 1A
- 230VAC / 0,5A
- Mounting hole: Ø16mm
