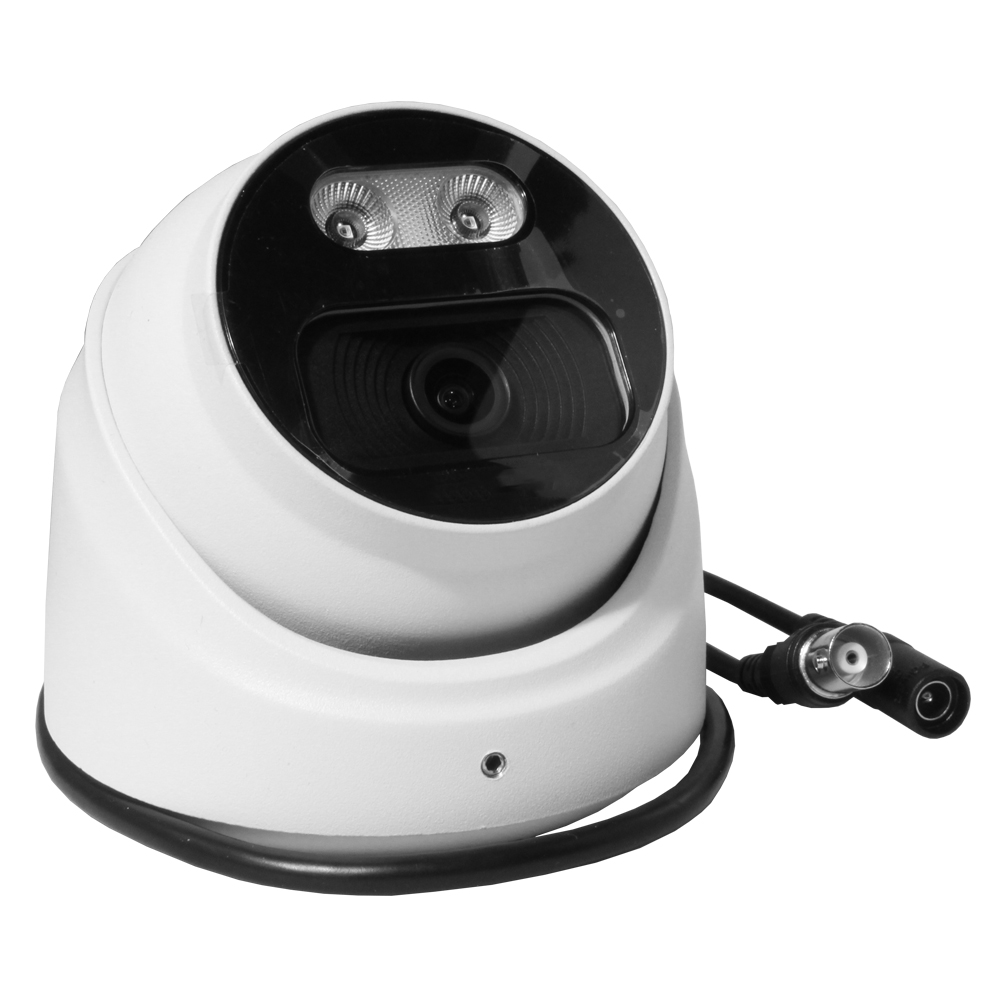

AHD/TVI/CVI dome kamera - 4K / 8MP, 25m IR natlys (IP67)
Varenr:
H30928
EAN:
5705412309288
4K udendørs dome HD overvågningskamera med IR natlys. 3-i-1 kamera, der understøtter AHD, TVI og CVI videoudgangstilstand. Kameraet kan naturligvis også bruges indendøre i butikker, kontorer og boliger. Valgbar opløsning, 4K (8MP@15fps/12.5fps) og 4MP/2MP@30fps/25fps). Derved er dette kamera kompatibelt med næsten alle analoge CCTV-optagere., herunder naturligvis også vore HD CCTV Hybridoptagere (se tilbehør).
Funktioner:
- AHD, TVI og CVI videoudgangstilstand
- 1/2,8'' SONY CMOS-sensor
- Infrarød afstand op til 25m
- Support OSD-menu
- Robust metalhus, IP67-klassificeret til udendørs installation
Tekniske detaljer:
- Producent: Longse Technology Ltd.
- Videoudgangstilstand: AHD/TVI/CVI: 8M@15fps/12.5fps, 4M/2M@30fps/25fps
- Kamera:
- Billedsensor: 1/2,8'' SONY CMOS-sensor
- Billedopløsning: 8M:3840*2160 4M:2560*1440 2M:1920*1080
- TV-system: PAL/NTSC
- Elektronisk lukker: Auto
- Minimal belysning:
- Farve: 0,01 lux@F1.6, AGC ON;
- S/H: 0 lux med IR
- Scanningssystem: Progressiv scanning
- Objektiv:
- Fokuslængde: 3,6mm
- Fokuskontrol: Fast
- Objektivtype: Fast
- Nattesyn:
- IR Cut Filter: Ja
- Infrarød LED: 42µ x 2 stk.
- Infrarød afstand: 25M
- IR-status: AGC Auto Control
- Kamerafunktioner:
- Starlight: Nej
- Dag/nat tilstand: Ja
- OSD-menu: Ja
- WDR: 120dB
- UTC: Ja
- Støjreduktion: 3DNR
- Koaksial audio: Nej
- Hvidbalance: AUTO / MANUEL
- Gain Control: AUTO
- Stikforbindelser:
- Video: BNC (hun)
- DC strøm: 5,5x2,1mm DC hun
- Generel:
- Hus: Metal, IP67
- Beslag: Nej
- Operationel temperatur: -15...60°C (RH95% Max)
- Opbevaringstemperatur: -25...60°C (RH95% Max)
- Strømkilde: DC12V±10%, 500mA
- Størrelse: Ø96 x 91mm
- Vægt: 600g
4K Outdoor conch HD surveillance camera with IR night vision. 3-in-1 camera which supports AHD, TVI and CVI video output mode. Selectable resolution, 4K (8M@15fps/12.5fps) og 4MP/2MP@30fps/25fps). This means that this camera is compatible with almost all analogue CCTV recorders, including of course our HD CCTV Hybrid recorders (see accessories).
Features:
- AHD, TVI and CVI video output mode
- 1/2.8'' SONY CMOS sensor
- Infrared Distance up to 25m
- Support OSD menu
- Robust metal housing, IP67 rated for outdoor installation
Specifications:
- Manufacturer: Longse Technology Ltd.
- Video Output Mode: AHD/TVI/CVI: 8M@15fps/12.5fps, 4M/2M@30fps/25fps
- Camera:
- Image Sensor: 1/2.8'' SONY CMOS sensor
- Image Resolution: 8M:3840*2160 4M:2560*1440 2M:1920*1080
- TV System: PAL/NTSC
- Electronic Shutter: Auto
- Minimun Illumination:
- Color: 0.01 lux@F1.6, AGC ON;
- B/W : 0 lux with IR
- Scanning System: Progressive Scan
- Lens:
- Focus Length: 3.6mm
- Focus Control: Fixed
- Lens Type: Fixed
- Night Vision:
- IR Cut Filter: Yes
- Infrared LED: 42µ x 2 pcs.
- Infrared Distance: 25M
- IR Status: AGC Auto Control
- Camera Features:
- Starlight: No
- Day/Night: Yes
- OSD Menu: Yes
- WDR: 120dB
- UTC: Yes
- Noise Reduction: 3DNR
- Coaxial Audio: No
- White Balance: AUTO / MANUAL
- Gain Control: AUTO
- General:
- Housing: Metal, IP67
- Bracket: NO
- Operating temperature: -15...60°C (RH95% Max)
- Storage Temperature: -25...60°C (RH95% Max)
- Power Source: DC12V±10%, 500mA
- Dimension: Ø96 x 91mm
- Weight: 600g
