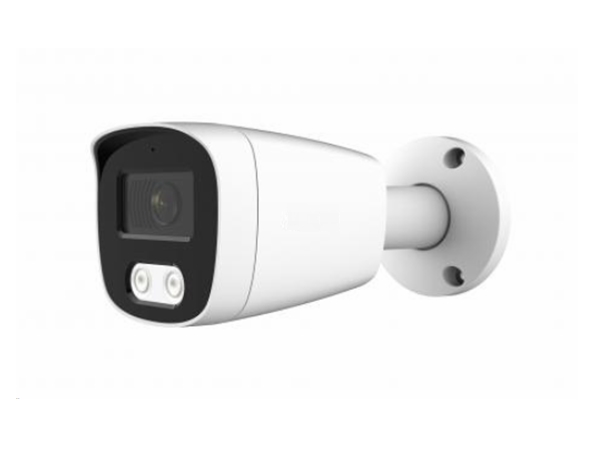

AHD/TVI projektilkamera - 2/4/5MP, 25m IR, Starlight (IP67)
Varenr:
H34876
EAN:
5410329678395
Dette HD-TVI (High Definition Transport Video Interface) kamera er udstyret med en SONY Starvis bagbelyst CMOS-sensor. Kameraet understøtter videoopløsning i både 2MP, 4MP og 5MP. Derved er den optimal til vores nye 5MP optagere (se tilbehør), men den er også kompatibel med andre (ældre) optagere, som kun understøtter 2MP eller 4MP TVI kameraer. Den er udstyret med starlight-funktion for superskarpe farvebilleder i skumringen. Hvis det er helt mørkt, så aktiveres det indbyggede 25m IR natlys.
Tekniske detaljer:
- Videoudgangstilstand: AHD/TVI: 5M@20fps/12.5fps, 4M@30fps, 2M@30fps; CVI: 4M@30fps, 2M@30fps
- Billedsensor: 1/2,8" SONY Starvis bagbelyst CMOS-sensor
- Billedopløsning:
- 5M: 2592x1944
- 4M: 2560x1440
- 2M: 1920*1080
- TV-system: PAL/NTSC
- Elektronisk lukker: Auto
- Minimun belysning: 0,005Lux
- Scanningssystem: Progressiv scanning
- Fokuslængde: 3,6mm
- Fokuskontrol: Fast
- Objektivtype: Fast
- IR Cut Filter: Ja
- Infrarød LED: 42µ x 2 stk.
- Infrarød afstand: 25M
- IR-status: AGC Auto Control
- Starlight-funktion: Ja
- Dag/nat: Ja/Nej
- OSD-menu: Ja
- WDR: Ja
- UTC: Ja
- Støjreduktion: AI-DNR
- Hvidbalance: AUTO / MANUEL
- Gain Control: AUTO
- IP-rating: IP67
- Hus: Metal
- Beslag medfølger: Ja
- Operationel temperatur: -10...60?
- Opbevaringstemperatur: -20...60?
- Strømkilde: 12Vdc±10%, 500mA (ikke inkluderet)
- Størrelse: 70 (B) x 67,5 (H) x 169 (L) mm
- Vægt: 600g
This HD-TVI (High Definition Transport Video Interface) camera is equipped with a SONY Starvis Back-illuminated CMOS sensor. The camera supports video resolution in both 2MP, 4MP and 5MP. Thereby it is optimal for our new 5MP recorders (see accessories) but it is also compatible with other (older) recordes wich only supports 2MP or 4MP TVI cameras. It is equipped with starlight function for super sharp color images in the dusk. If it's completely dark, then the built-in 25m IR night vision will activate.
Specifications:
- Video Output Mode: AHD/TVI: 5M@20fps/12.5fps, 4M@30fps, 2M@30fps; CVI: 4M@30fps, 2M@30fps
- Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor
- Image Resolution:
- 5M: 2592x1944
- 4M: 2560x1440
- 2M: 1920*1080
- TV System: PAL/NTSC
- Electronic Shutter: Auto
- Minimun Illumination: 0.005Lux
- Scanning System: Progressive Scan
- Focus Length: 3.6mm
- Focus Control: Fixed
- Lens Type: Fixed
- IR Cut Filter:Yes
- Infrared LED: 42µ x 2 pcs.
- Infrared Distance: 25M
- IR Status: AGC Auto Control
- Starlight-funktion: Yes
- Day/Night: Yes/No
- OSD Menu: Yes
- WDR: Yes
- UTC: Yes
- Noise Reduction: AI-DNR
- White Balance: AUTO / MANUAL
- Gain Control: AUTO
- IP-rating: IP67
- Housing: Metal
- Bracket included: Yes
- Operating temperature: -10...60?
- Storage temperature: -20...60?
- Power Source: 12Vdc±10%, 500mA (not included)
- Dimensions: 70(W) x 67.5(H) x 169(L)mm
- Weight: 600g
