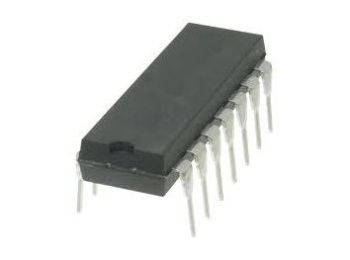

LM3302N Komparator - 2÷28V, 4 kanaler (DIP14)
Varenr:
H36037
EAN:
5705412360371
Denne enhed består af fire uafhængige spændingskomparatorer, der er designet til at fungere fra en enkelt strømforsyning over en bred vifte af spændinger. Drift fra dobbeltforsyning er også mulig, så længe forskellen mellem de to forsyninger er 2V til 28V, og VCC er mindst 1,5V mere positiv end den almindelige indgangsspænding. Strømafløb er uafhængigt af forsyningsspændingen. Udgangene kan tilsluttes andre open-collector output for at opnå lednigsforbundne AND relationer.
Tekniske detaljer:
- Producent (varemærke): TEXAS INSTRUMENTS
- Type integreret kredsløb: komparator
- Montering: Printhul
- Hus: DIP14
- Operationel temperatur: -40...85°C
- Indgang offset spænding: 20mV
- Antal komparatorer: 4
- Driftsspænding: 2...28V
Også kendt som: MC3302.
This device consists of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 28 V and VCC is a least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
Specifications:
- Manufacturer: TEXAS INSTRUMENTS
- Type of integrated circuit: comparator
- Mounting: THT
- Case: DIP14
- Operating temperature: -40...85°C
- Input offset voltage: 20mV
- Number of comparators: 4
- Operating voltage: 2...28V
Also known as: MC3302.
