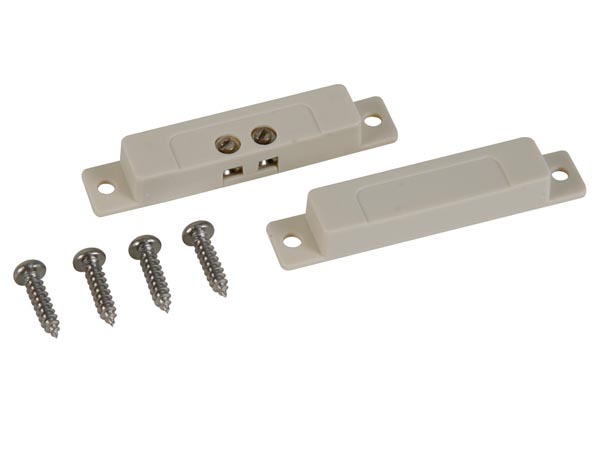

REED kontakt - Mini 0,5A ved 100Vac/dc (SPST-NC)
Varenr:
H36053
EAN:
5410329430795
Egenskaber:
- Housing: Hvid ABS
- Miniature magnetic switch NC (when activated by magnet)
- Screw mounting
Tekniske detaljer:

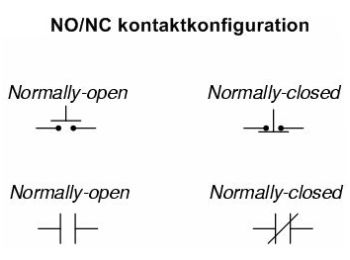

- Kontakt: NC
- Switching voltage (max): 100V AC/DC
- Switching current (maks.): 0.5A
- Contact capacity (maks.): 10VA
- Initial contact: 0,2 ohm max
- Carry current (maks.): 1A
- Breakdown voltage: 200Vdc
- Insulation resistance: 100M ohm min.
- Switch cycle: 5 x 10 (7) at 30V 0.1A DC
- With leads (on switch): 300mm
- Operating gap: maks. 20mm
- Størrelse: 34 x 15 x 8mm
- Operationel temperatur: -20 ~ 60°C
