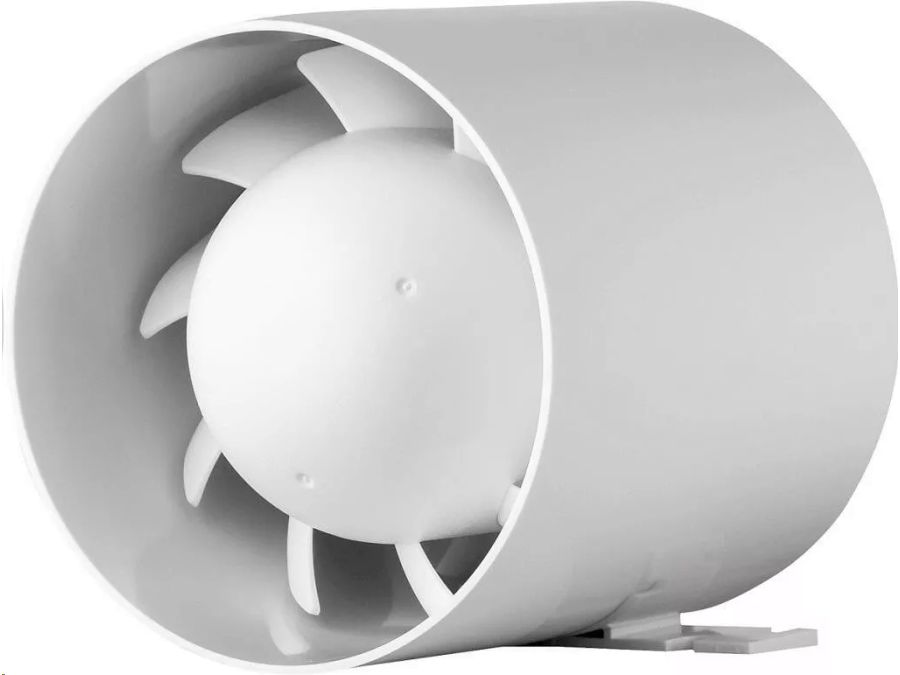

Kanalventilator - aRc Ø120 S, Standard, 16W, 158m3/h
Varenr:
H40649
EAN:
5901583200502
aRc-serien fra airRoxy er aksiale kanalventilatorer, som normalt monteres direkte i kanalsystemet. Monteringspladen giver en ekstra funktionalitet til at montere ventilatoren uden for ventilationskanalen.
Tekniske detaljer:
- Producent (varemærke): airRoxy
- Ventilatortype: Aksial kanal, Standard
- Tilslutningsdiameter: Ø120mm
- Strømforsyning: 230Vac, 50Hz
- Effekt: 16W
- Luftflow: 158m3/time

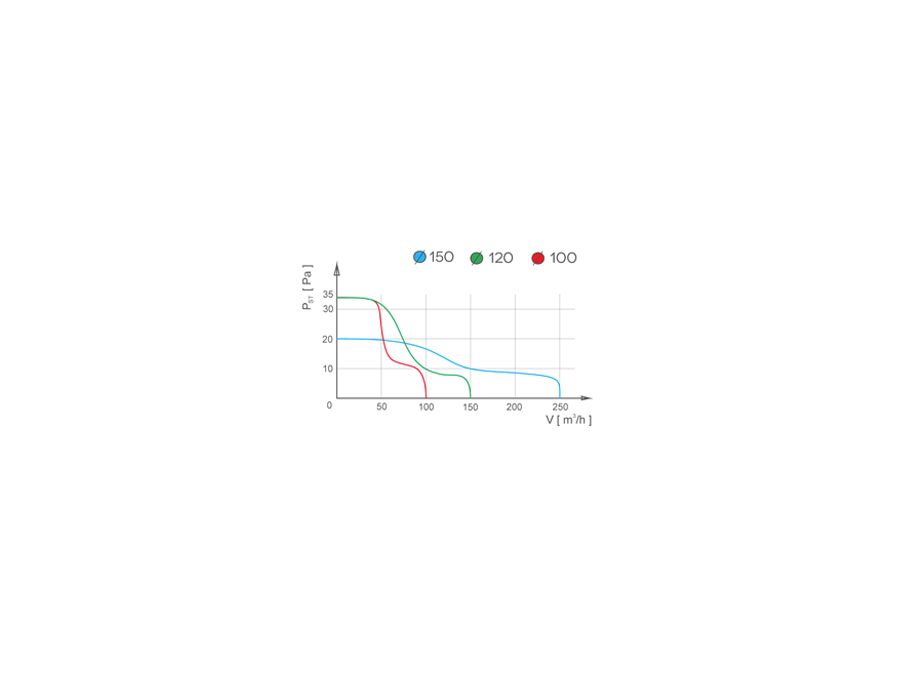

- Statisk tryk: Op til 35 Pa
- Lydtryk (1m): 46 dB
- Hastighed: 2200 RPM

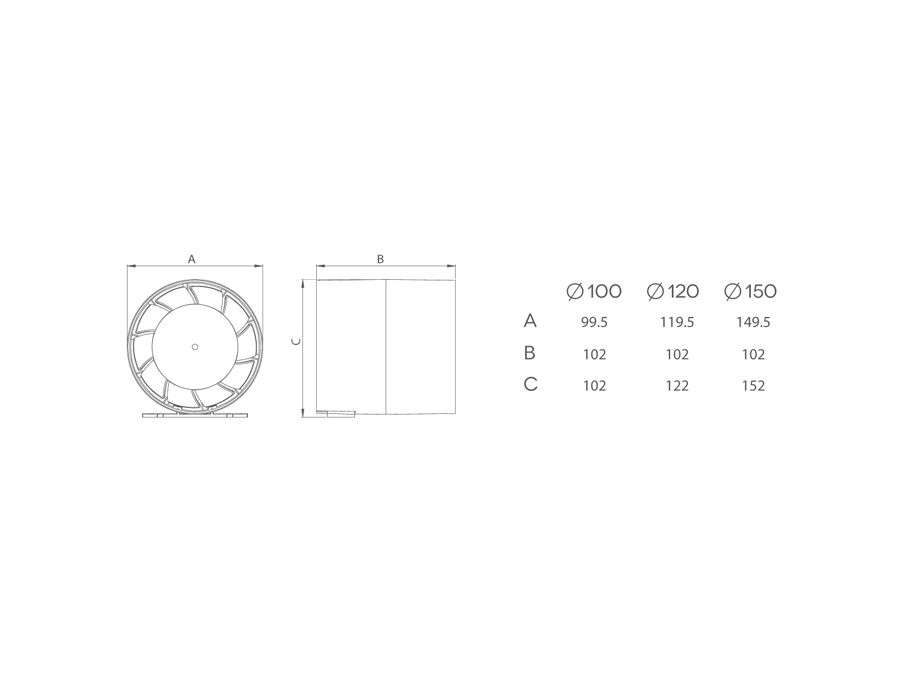

- Størrelse (A x B x C): 119,5 x 102 x 122mm
- Vægt: 460g
- Farve: Hvid
The aRc series from airRoxy are axial duct fans, which are normally mounted directly in the duct system. The mounting plate provides an extra functionality for mounting the fan outside the ventilation duct.
Specifications:
- Manufacturer (brand): airRoxy
- Fan type: Axial duct fan, Standard
- Diameter: Ø120mm
- Supply voltage: 230Vac, 50Hz
- Motor power: 16W
- Aur flow: 158m3/h
- Static pressure: 46 Pa
- Acoustic pressure (1m): 46 dB
- Speed: 2200 RPM
- Dimensions (A x B x C): 119,5 x 102 x 122mm
- Weight: 460g
- Color: White
