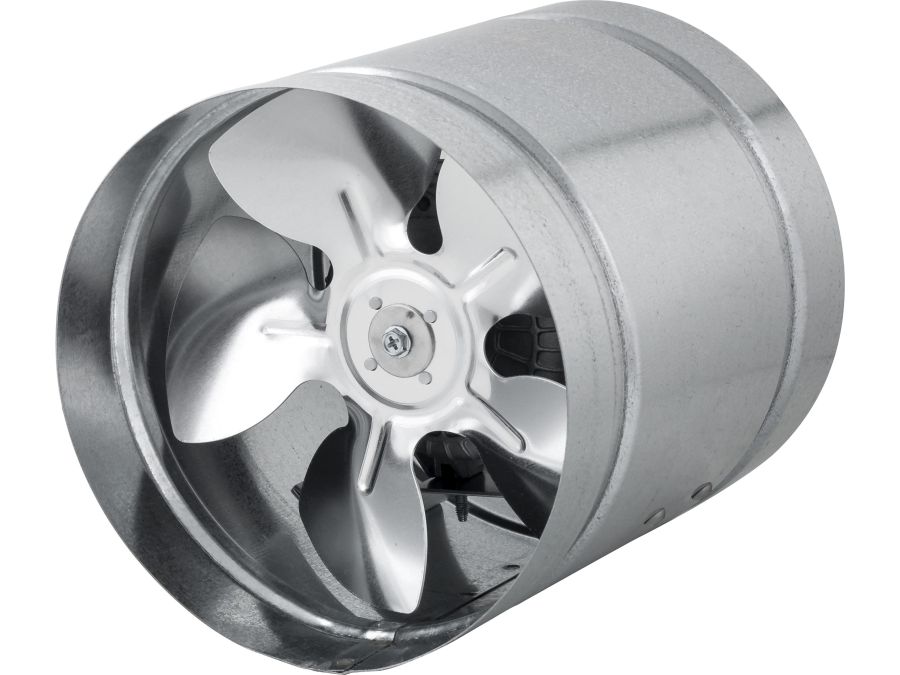

Kanalventilator - aRw Ø160mm, 32W, 185m3/h
Varenr:
H40656
EAN:
5901583202117
aRw kanalventilator kan bruges på offentlige steder som butikker, barer, restauranter, vaskefaciliteter samt i huse, lejligheder og industribygninger (garager, lagerhuse, opbevaringsrum).
aRw har en kompakt konstruktion af rustfrit stål. aRw-ventilatorer kan tilsluttes hastighedsstyring, hvilket gør det nemt at justere ventilatorens styrke til brugernes behov.
Tekniske detaljer:
- Producent (mærke): airRoxy
- Ventilatortype: Aksialkanalventilator, Standard
- Tilslutningsdiameter: Ø160mm
- Luftflow: 185 m3/h
- Statisk tryk: 32 Pa
- Akustisk tryk: 52 dB
- Strømforsyning: 240Vac, 50 Hz
- Hastighed: 1400 RPM
- Effekt: 32 W
- Strøm: 0,2 A
- Maks. driftstemperatur: 40°C
- Vægt: 1600g
- IP-klassificering: IPX2
- Isoleringsklasse: 1
- Farve: Hvid
aRw duct fan can be used in public places like shops, bars, restaurants, washing facilities as well as in houses, flats and industrial buildings ( garages, warehouses, storage halls).
aRw has got compact construction made of rustproof covered steel. aRw fans can be equipped in spin controller, in result it is easy to adjust the work of the fan to the users needs.
Specifications:
- Manufacturer (brand): airRoxy
- Fan type: Axial duct fan, Standard
- Diameter: Ø160 mm
- Air flow: 185 m3/h
- Static pressure: 32 Pa
- Acoustic pressure: 52 dB
- Supply voltage: 230/50 V, 50 Hz
- Speed: 1400 RPM
- Motor power: 32 W
- Power consumption: 0.2 A
- Max. operating temperature: 40 °C
- Weight: 1600g
- IP rating: IPX2
- Insulation class: 1
- Color: White
