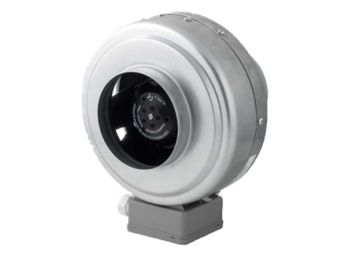

Industriel kanalventilator - aRd Ø250mm, 150W, 1050m3/t
Varenr:
H40756
EAN:
5901583202469
ARd-ventilatoren er en radial ventilator designet til montering i kanalsystem. Anvendelig i offentlige rum (butikker, barer, restauranter), sanitære faciliteter såvel som i boliglokaler og industrielle faciliteter (haller, garager, lager, værksteder). ARd-ventilatoren er tilgængelig i diametre fra Ø100 til Ø315mm. Ventilatorhuset er lavet af galvaniseret stål. For at optimere driften af enheden er det muligt at bruge en hastighedskontrol. ARd-ventilatoren er udstyret med en enfaset induktionsmotor med en startkondensator, IP44 klassificeret til kontinuerlig drift, S1, kendetegnet ved stille drift og høj effektivitet.
Tekniske detaljer:
- For rørdiameter: Ø250mm
- Luftstrøm: 1050 m3/h5
- Lydtryk: 66dB
- Omdrejninger: 2550 rpm
- Effekt: 150W
- Dimensioner:
- ØA: 248mm
- B: 245mm
- ØC: 344mm
- D: 22mm
- E: 25mm
- Operationel temperatur: -25...60°C
- IP-rating: IP44
- Isolationsklasse: F
- Vægt: 6,1kg
The aRd fan is a radial fan designed for duct assembly. Used for ventilation in a duct system. It can be used in public spaces (shops, bars, restaurants), sanitary facilities, as well as in residential premises and industrial facilities (halls, garages, warehouses, workshops). ARd fans are available in diameters from Ø100 to Ø315mm. The fan housing is made of galvanized steel. In order to optimize the operation of the device, it is possible to use a speed controller. The aRd fan is equipped with a single-phase induction motor with a starting capacitor, IP44 rated for continuous operation, S1, characterized by quiet operation and high efficiency.
Specifications:
- For duct diameter: Ø250mm
- Airflow: 1050 m3/h
- Sound pressure: 66dB
- Rotations: 2550/min.
- Power: 150W
- Dimensions:
- ØA: 248mm
- B: 245mm
- ØC: 344mm
- D: 22mm
- E: 25mm
- Max. temperature: -25...60°C
- IP-rating: IP44
- Insulation class: F
- Weight: 6,1kg
