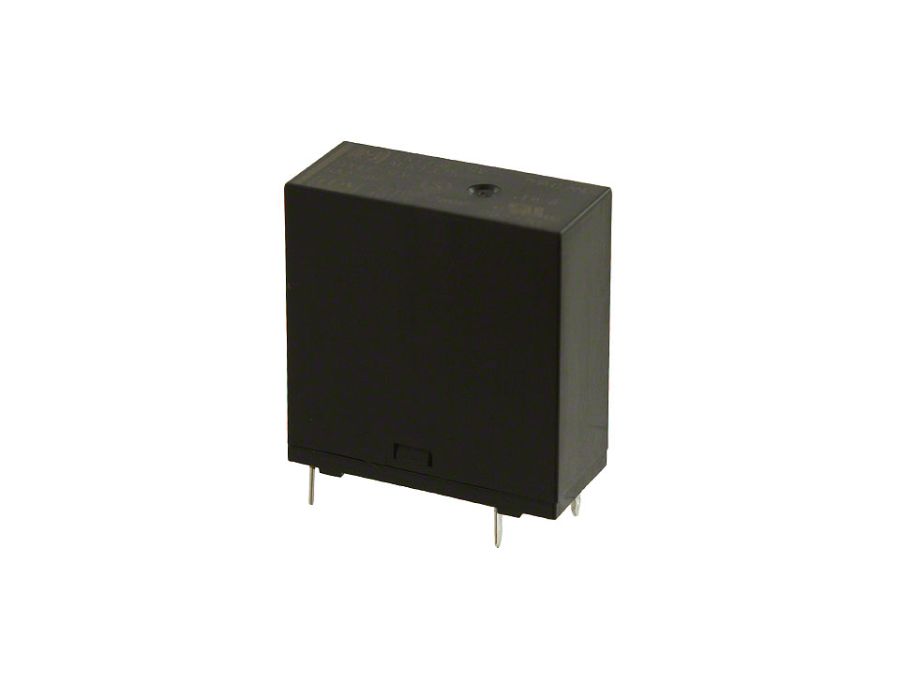

Vertikalt relæ - 9VDC / 5A, 1 x slutte (SPST-NO)
Varenr:
H42221
EAN:
5705412422215
Generel formål relæ SPST-NO (1 form A). 9Vdc spolespænding.
Tekniske detaljer:
- Producent (varemærke): Panasonic Electric Works
- Serie: LK-T
- Monteringstype: Printhul
- Spolespænding: 9Vdc
- Kontaktkonfiguration: SPST-NO
- Maks. Kontaktstrøm (ved resistiv belastning): 5A
- Maks. kontaktspænding: 277VAC
- Spolestrøm: 27,8 mA
- Spoletype: Ikke låst
- Aktiveringsspænding: 6,3 Vdc
- Slipspænding: 0,9 Vdc
- Aktiveringsstid: 15ms
- Sliptid: 5ms
- Operationel temperatur: -40°C ~70°C
- Kontaktmateriale: Silver Tin Oxide (AgSnO)
- Spolemodstand: 324 ohm
Også kendt som: 255-3500, LKT1AF9V, LKS1AF-9V.
General Purpose Relay SPST-NO (1 Form A). 9VDC coil voltage.
Specifications:
- Manufacturer: Panasonic Electric Works
- Series: LK-T
- Mounting Type: THT
- Coil Voltage: 9VDC
- Contacts configuration: SPST-NO
- Max. Contact Current (at resistive load): 5A
- Max. switching voltage: 277VAC
- Coil Current: 27.8mA
- Coil Type: Non Latching
- Must Operate Voltage: 6.3 VDC
- Must Release Voltage: 0.9 VDC
- Operate Time: 15ms
- Release Time: 5ms
- Operating Temperature: -40°C ~ 70°C
- Contact Material: Silver Tin Oxide (AgSnO)
- Relay Type: General Purpose
- Coil Resistance: 324 Ohms
