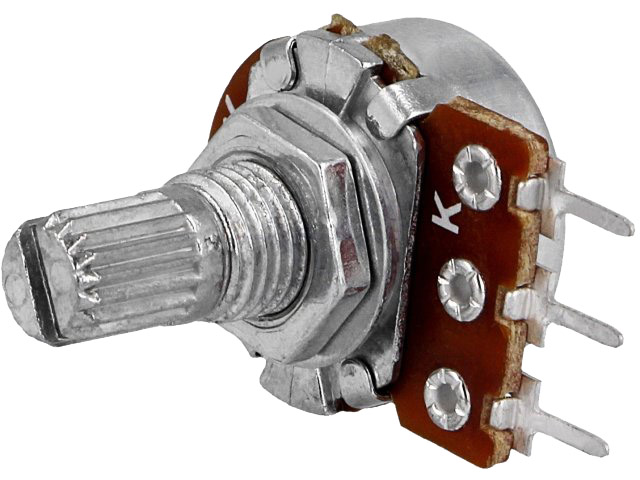

Potmeter - 22kOhm mono log., Ø6mm rillet metalaksel
Varenr:
H42356
EAN:
5705412423564
Drejepotmeter m. 6mm rillet metalaksel, for 18-tands push-on knapper. Med møtrik for kabinetmontage samt printben for print-loddemontage.
Tekniske detaljer:
- Producent (varemærke): SR Passives
- Type potentiometer: Aksel
- Slags potentiometer: Enkeltdrejning
- Modstand: 22 kOhm
- Effekt: 63mW
- Tolerance: ± 20%
- Montering: Printhul
- Akseldiameter: 6mm
- Aksel længde: 9mm
- Karakteristika: Logaritmisk
- Husstørrelse: Ø17x9.2mm
- Benlængde: 6mm
- Husmateriale: Metal
- Spormateriale: Kulstof
- Potentiometer funktioner: Mono
- Akseloverflade: Riflet
- Mekanisk rotationsvinkel: 300°
- Benafstand: 5mm
- L aksel længde: 15mm
- Maks. driftsspænding: 150V
- Paneludskæringsdiameter: 7,2mm
Specifications:
- Manufacturer: SR Passives
- Type of potentiometer: shaft
- Kind of potentiometer: single turn
- Resistance : 22kohm
- Power: 63mW
- Tolerance: ±20%
- Mounting: THT
- Shaft diameter: 6mm
- Shaft length: 9mm
- Characteristics: logarithmic
- Body dimensions: Ø17x9.2mm
- Thread length: 6mm
- Body material: metal
- Leads: for PCB
- Track material: carbon
- Potentiometer features: mono
- Shaft surface knurled
- Mechanical rotation angle: 300°
- Terminal pitch: 5mm
- L shaft length : 15mm
- Max. operating voltage: 150V
- Panel cutout diameter: 7.2mm
