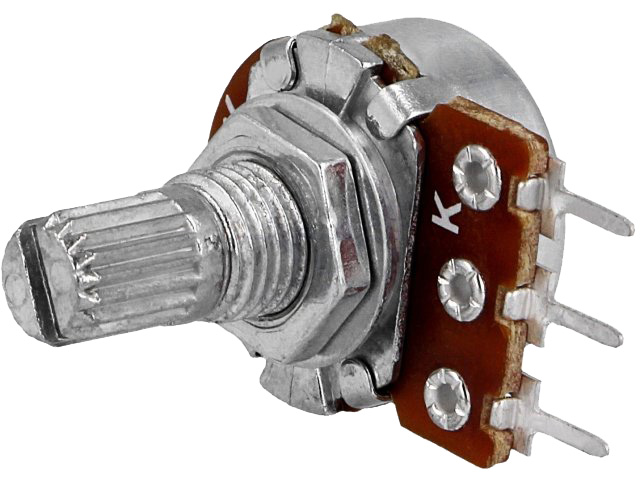

Potmeter - 500kOhm mono lin., Ø6mm rillet metalaksel
Varenr:
H42362
EAN:
5705412423625
Tekniske detaljer:
- Producent (varemærke): BOURNS
- Type potentiometer: aksel
- Montering: Printhul
- Effekt: 1W
- Modstand: 10 kOhm
- Tolerance: ±10%
- Mekanisk rotationsvinkel: 290°
- Elektrisk monage: Printben
- Egenskaber: lineær
- Aksel diameter: Ø3,18mm
- Akseloverflade: glat
- Husstørrelse: 13,25x12,5x8,9mm
- Gevindlængde: 6,35mm
- Type potentiometer: enkelt omdrejning
- Aksellængde: 15,9mm
- Benafstand: 2,54mm
- L aksel længde: 22,25mm
- IP-klassificering: IP64
- Anvendelse: audio
- Spormateriale: cermet
Specifications:
- Manufacturer: BOURNS
- Type of potentiometer: shaft
- Mounting: THT
- Power: 1W
- Resistance: 10 kOhm
- Tolerance: ±10%
- Mechanical rotation angle: 290°
- Leads: for PCB
- Characteristics: linear
- Shaft diameter: Ø3.18mm
- Shaft surface: smooth
- Body dimensions: 13.25x12.5x8.9mm
- Thread length: 6.35mm
- Kind of potentiometer: single turn
- Shaft length: 15.9mm
- Terminal pitch: 2.54mm
- L shaft length: 22.25mm
- IP rating: IP64
- Application: audio
- Track material: cermet
