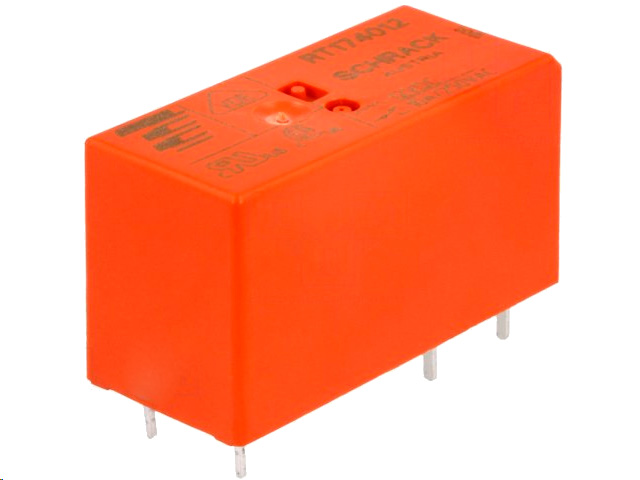

Miniature relæ - 12VDC 15A, 1 x skifte (SPDT), 5-ben (3,5mm)
Varenr:
H42490
EAN:
5705412424905
Tekniske detaljer:
- Producent (varemærke): TE Connectivity
- Relæetype: Elektromagnetisk
- Kontaktkonfiguration: SPDT
- Spolespænding: 12VDC
- AC-kontaktstrøm (ved resistiv belastning): 15A / 250VAC
- DC-kontaktstrøm (ved resistiv belastning): 15A / 24VDC
- Maks. kontakt nuværende: 15A
- Maks. spænding: 400VAC, 300VDC
- Relævariant: følsom, miniature
- Montering: Printhul
- Spolemodstand: 576 ohm
- Min. spole spænding: 9VDC
- IP-klassificering: IP67
- Mekanisk holdbarhed: 30000000 cykler
- Operationel temperatur: -40 ... 85°C
- Skiftkapacitet: 3kVA
- Kontaktmateriale: AgNi 90/10
- Benafstand: 3,5mm
- Spoleffektforbrug: 250mW
- Spole strøm: 20,8mA
- Antal ben: 5
- Maks stigningsstrøm: 15A
- Relæserie: RT1
- Husstørrelse: 29x15,7x12,7mm
- Vægt: 14g
Specifications:
- Manufacturer: TE Connectivity
- Type of relay: Electromagnetic
- Contacts configuration: SPDT
- Rated coil voltage: 12V DC
- AC contacts rating (at resistance load): 15A / 250VAC
- DC contacts rating (at resistance load): 15A / 24VDC
- Max. contact current: 15A
- Max. switched voltage: 400VAC, 300VDC
- Relay variant: sensitive, miniature
- Mounting: THT
- Coil resistance: 576 ohm
- Min coil voltage: 9VDC
- IP rating: IP67
- Mechanical durability: 30000000 cycles
- Operating temperature: -40...85°C
- Switching capacity: 3kVA
- Contact material: AgNi 90/10

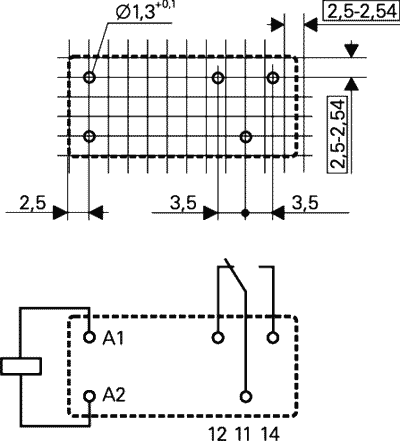

- Terminal pitch: 3,5mm
- Coil power consumption: 250mW
- Coil current: 20,8mA
- Number of pins: 5
- Max surge current: 15A
- Relay series: RT1

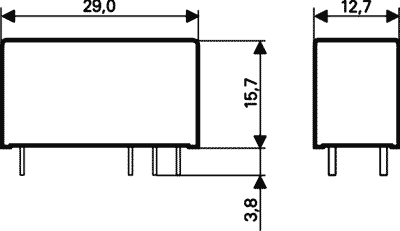

- Body dimensions: 29 x 15.7 x 12.7mm
- Weight: 14g
