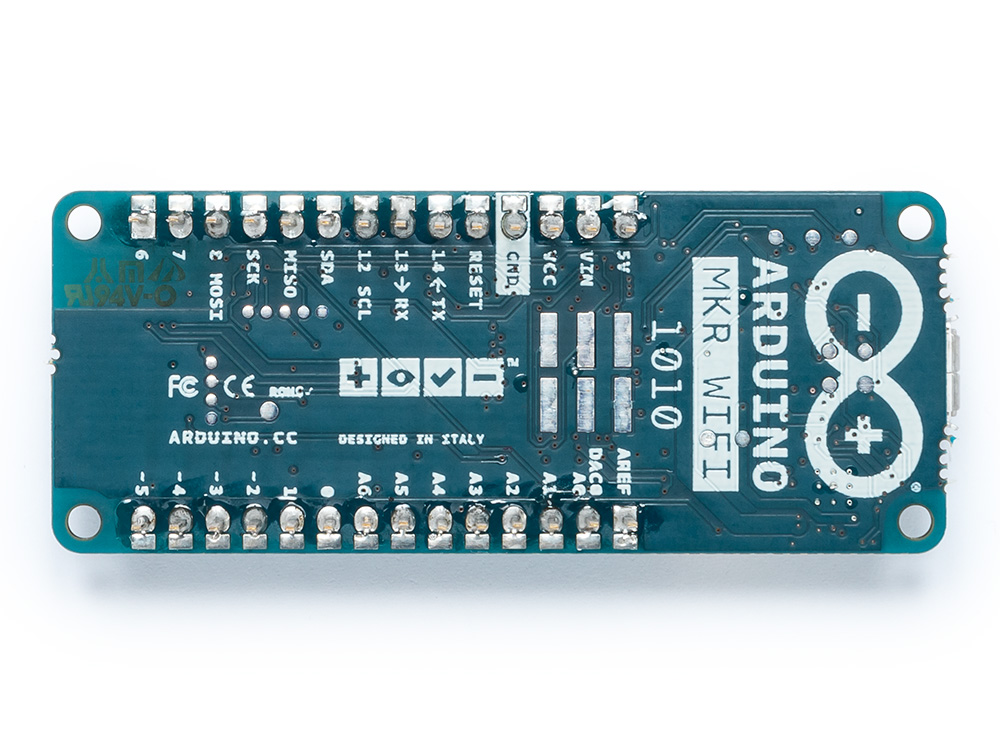

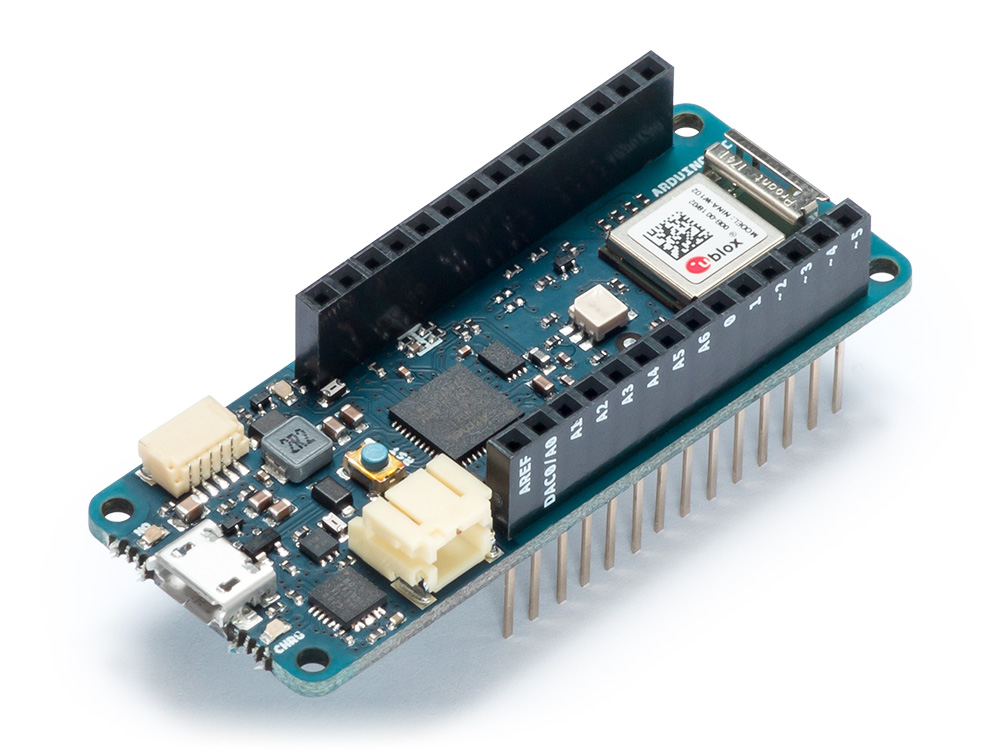

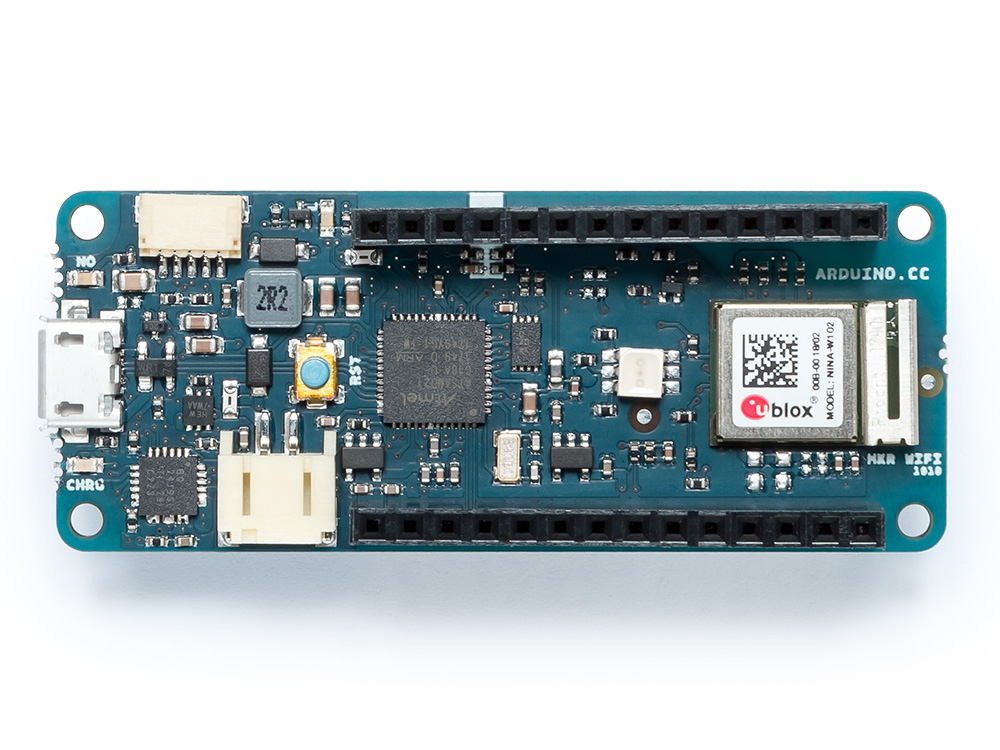

Arduino MKR WIFI 1010
Varenr:
H42511
EAN:
7630049200258
Arduino MKR WiFi 1010 er den nemmeste indgangsvinkel til grundlæggende IoT- og pico-netværksapplikationsdesign. Uanset om du ønsker at opbygge et sensornetværk, der er tilsluttet dit kontor eller din hjemmereuter, eller hvis du vil oprette en BLE-enhed, der sender data til en mobiltelefon, er MKR WiFi 1010 din one-stop-løsning for mange af de grundlæggende IoT-applikations scenarier.
Vil du tilføje et WiFi-interface til dine enheder? Med MKR WIFI 1010 kan du nemt forbinde med andre Arduino produkter og konfigurere ved hjælp af Arduino software - og du behøver ikke være netværksekspert. Dette er den nyeste version af MKR 1000 WIFI, men med et ESP32 modul fremstillet af U-BLOX.
Egenskaber:
- Fuldhastigheds USB-enhed og integreret host inkluderet
- SAMD21 Cortex-M0 + 32bit Low Power ARM MCU
- U-BLOX NINA-W10-serien Lav effekt 2,4 GHz IEEE® 802.11 b / g / n Wi-Fi
- ECC508 Crypto-godkendelse
Tekniske detaljer:
- Microcontroller: SAMD21 Cortex-M0 + 32bit Low Power ARM MCU
- Board Strømforsyning (USB / VIN) 5V
- Understøttet batteri: Li-Po Single Cell, 3,7V, 700mAh Minimum
- Kredsløbsspænding: 3,3V
- Digitale I/O-pins: 8
- PWM-pins: 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3- eller 18-, A4-eller 19)
- UART: 1
- SPI: 1
- I2C: 1
- I2S: 1
- Forbindelse: WiFi, BLE
- Analog Input Pins: 7 (ADC 8/10/12 bit)
- Analog output-pins: 1 (DAC 10 bit)
- Eksterne interrupter: 8 (0, 1, 4, 5, 6, 7, 8, A1-eller 16-, A2- eller 17)
- DC Strøm pr. I/O-pin: 7 mA
- Flash hukommelse: 256 KB
- SRAM: 32 KB
- EEPROM: Nej
- Urhastighed: 32,768kHz (RTC), 48 MHz
- Størrelse: 61,5 x 25mm
- Vægt: 32g
The Arduino MKR WiFi 1010 is the easiest point of entry to basic IoT and pico-network application design. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a BLE device sending data to a cellphone, the MKR WiFi 1010 is your one-stop-solution for many of the basic IoT application scenarios.
Want to add a WiFi interface to your devices? Get the MKR WIFI 1010. It connects easily to other Arduino products and is configurable using Arduino software and you dont need to be a network expert. This is the newest version of the MKR 1000 WIFI, but with an ESP32 module on board made by U-BLOX.
Features:
- Full-Speed USB Device and Embedded Host Included
- SAMD21 Cortex-M0+ 32bit Low Power ARM MCU
- U-BLOX NINA-W10 Series Low Power 2.4GHz IEEE® 802.11 b/g/n Wi-Fi
- ECC508 Crypto Authentication
Specifications:
- Microcontroller: SAMD21 Cortex-M0+ 32bit Low Power ARM MCU
- Board Power Supply (USB/VIN) 5V
- Supported Battery: Li-Po Single Cell, 3.7V, 700mAh Minimum
- Circuit Operating Voltage: 3.3V
- Digital I/O Pins: 8
- PWM Pins: 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19)
- UART: 1
- SPI: 1
- I2C: 1
- I2S: 1
- Connectivity: WiFi, BLE
- Analog Input Pins: 7 (ADC 8/10/12 bit)
- Analog Output Pins: 1 (DAC 10 bit)
- External Interrupts: 8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17)
- DC Current per I/O Pin: 7 mA
- Flash Memory: 256 KB
- SRAM: 32 KB
- EEPROM: No
- Clock Speed: 32.768 kHz (RTC), 48 MHz
- Dimensions: 61,5 x 25 mm
- Weight: 32 g
