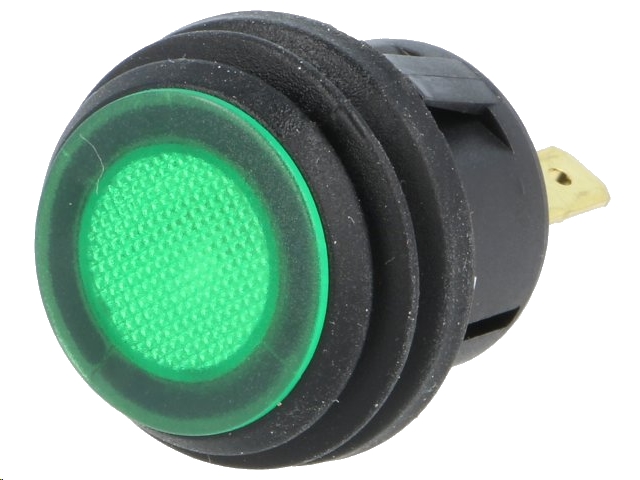

Trykkontakt - 1P OFF-ON, 6A/250V, Grøn lys, IP65 (Ø20,2mm)
Varenr:
H42596
EAN:
5705412425964
Tekniske detaljer:
- Producent (varemærke): SCI
- Type kontakt: Trykkontakt
- Antal positioner: 2
- Antal stabile positioner: 2
- Kontaktkonfiguration: SPST-NO
- Skiftemetode: OFF-ON
- AC kontaktstrøm (ved resistiv belastning): 6A / 250VAC
- Aktuator farve: Grøn
- Lyskilde: Neonlampe 230V
- Knapfarve: Grøn
- Elektrisk montage: 4,8 x 0,8mm spadestik (se tilbehør)
- Mekanisk montage: Panel
- Operationel temperatur: -25 ... 70°C
- Knapform: Rund
- Monteringshul diameter: Ø20,2mm
- IP-klassificering: IP65
- Maks. kontakt modstand: 50mOhm
- Serie: R13-527
- Maks. paneltykkelse: 3mm
- Husmateriale: Polyamid
- Husstørrelse: Ø17,5x18mm
- AC test spænding: 1,5kV
- Brandbarhed: UL94V-2
- Kontaktflader: Forsølvet
Specifications:
- Manufacturer: SCI
- Type of switch: Push-button
- Number of positions: 2
- Stable positions number: 2-position
- Contacts configuration: SPST-NO
- AC contacts rating (at resistance load): 6A / 250VAC
- Actuator colour: Green
- Illumination: Neon lamp 230V
- Backlight colour: Green
- Leads: 4,8x0,8mm connectors
- Switching method: OFF-ON
- Operating temperature: -25...70°C
- Mounting: on panel
- Button shape: Round
- Mounting hole diameter: Ø20,2mm
- IP rating: IP65
- Max. contact resistance:: 50m?
- Manufacturer series: R13-527
- Panel thickness: Max. 3mm
- Body material: polyamide
- Body dimensions: Ø17,5x18mm
- AC test voltage: 1,5kV
- Flammability rating: UL94V-2
- Terminals plating: silver plated
