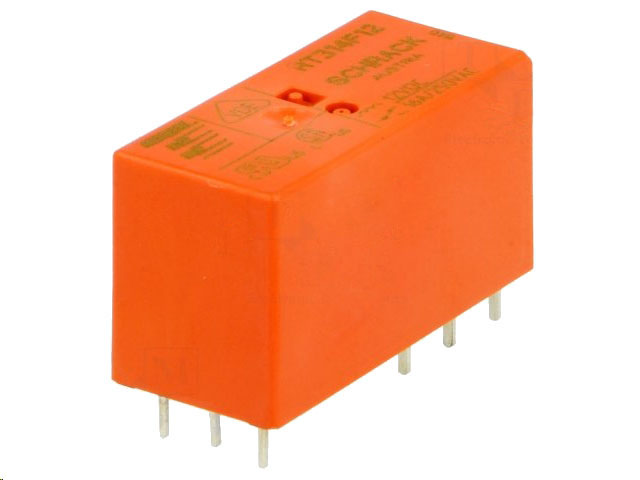

Kiprelæ (bistabil) - 12VDC 16A, 1 x skifte (SPDT) 2 spoler
Varenr:
H42655
EAN:
5705412426558
Miniature RT1 bistabil printrelæ. Polariseret bistabil version med 2 spoler.
Tekniske detaljer:
- Producent (varemærke): TE Connectivity
- Relætype: Elektromagnetisk
- Kontaktkonfiguration: SPDT
- Nominel spolespænding: 12V DC
- AC kontaktstrøm (ved resistiv belastning): 16A / 250VAC
- DC kontaktstrøm (ved resistiv belastning): 16A / 24VDC
- Maks. kontakt strøm: 16A
- Maks. skiftespænding: 400VAC, 300VDC
- Relævariant: Bistabil, 2 spoler, miniature
- Montering: Printhul
- Spolemodstand: 240 Ohm

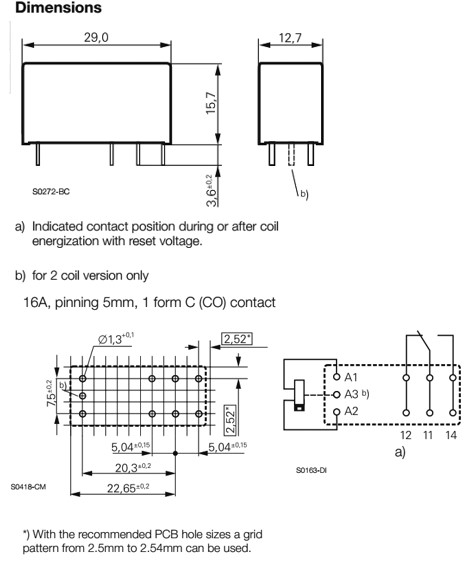

- Husstørrelse: 29x15,7x12,7mm
- Spoleffektforbrug: 600mW
- IP rating: IP40
- Mekanisk holdbarhed: 5000000 cykler
- Operationel temperatur: -40 ... 85°C
- Vægt: 14g
- Relæserie: RT1
- Skiftekapacitet: 4kVA
- Kontaktmateriale: AgNi 90/10
- Benafstand: 5mm
- Antal ben: 9
- Maks. overspændingsstrøm: 30A
Også kendt som: 8-1393239-7
Power PCB Relay RT1 bistable. Polarized bistable version with 2 coils.
Specifications:
- Manufacturer: TE Connectivity
- Type of relay: electromagnetic
- Contacts configuration: SPDT
- Rated coil voltage: 12V DC
- AC contacts rating (at resistance load): 16A / 250VAC
- DC contacts rating (at resistance load): 16A / 24VDC
- Contact current max.: 16A
- Switched voltage: max 400V AC, max 300V DC
- Relay variant: bistable, two coils, miniature
- Mounting: THT
- Coil resistance: 240?
- Body dimensions: 29 x 15,7 x 12,7mm
- Coil power consumption: 600mW
- IP rating: IP40
- Mechanical durability: 5000000cycles
- Operating temperature: -40...85°C
- Weight: 14g
- Relay series: RT1
- Switching capacity: 4kVA
- Contact material: AgNi 90/10
- Terminal pitch: 5mm
- Number of pins: 9
- Max surge current: 30A
