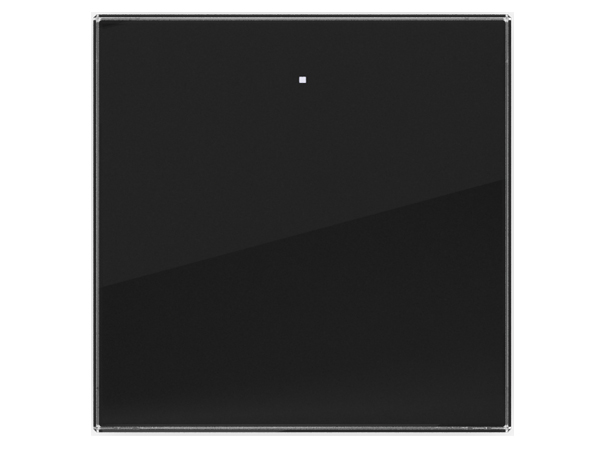

VELBUS - Glas kotrolmodul m. 1 touchknap, Sort

Egenskaber:

• Configuration using Velbus PC interface (e.g.365968">VMB1USB, 378568">VMBRSUSB) and
  free 376994">VELBUSLINK software.
• LED feedback and night orientation.
• Different reaction times can be set for each button, 0, 1, 2 or 3 seconds.
• Detects long or short press.
• Multichannel possibility, each short press
  activates next channel (maks. 8).
• Extended day, week and year timers with possible sun (rise/set)
  synchronization* to simulate button press.
• On board temperature sensor to drive heating or air-conditioning.

Tekniske detaljer:

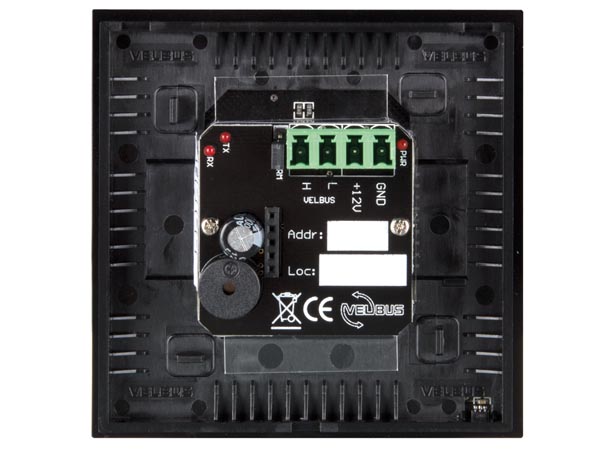

• LED indication for supply and data ( at backside).
• MTouch© technology
• Safety glass
• Strømforsyning: 12...18VDC
• Strømforbrug: 18mA
• 250 possible addresses
• Uses 1 address per 8 buttons and per temperature sensor (configure using 376994">VELBUSLINK)

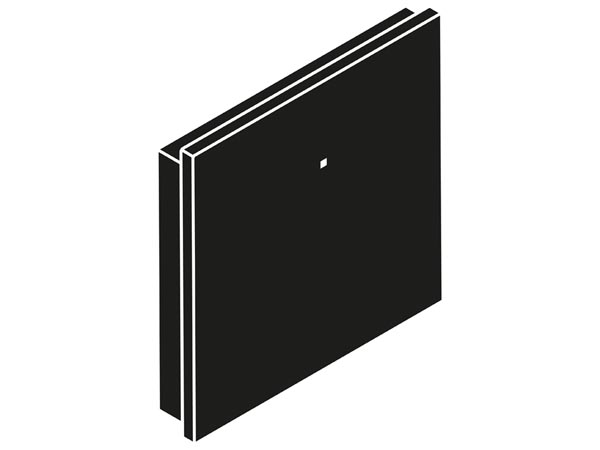

• Størrelse:
  • 86 x 86 x 11mm / 3.38 x 3.38 x 0.43"
  • 4mm (0.15") glass + 7mm (0,27") distance to wall
  • Dybde: 28mm (1.10") including connector
• optional:
  • 411314">VMBGPFC: Frame for Velbus Glass Panel (claw version) - 5PCS
  • 411312">VMBGPFS: Frame for Velbus Glass Panel (screw version) - 5PCS
