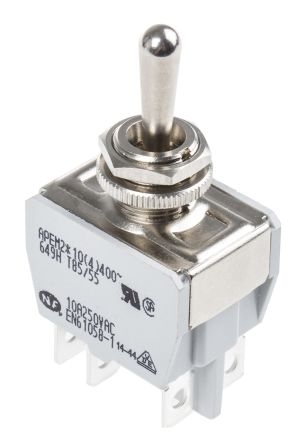

Vippekontakt - 2P ON-OFF-ON, 10A/250VAC, spadestik (Ø12,2mm)
Varenr:
H43171
EAN:
5705412431712
Tekniske detaljer:
- Producent (varemærke): APEM
- Type kontakt: Toggle
- Antal stillinger: 3
- Antal stabile positioner: 3-position
- Kontaktkonfiguration: DP3T
- Skiftemetode: ON-OFF-ON
- Maks. AC-kontaktstrøm (ved resistiv belastning): 10A / 250VAC
- Ledningsmontage: 6,35x0,8mm spadestik (se tilbehør), eller lodning
- Operationel temperatur: -20 ... 55°C
- Kind of switch: Round
- Monteringshul diameter: Ø12,2mm
- Knaphøjde: 17,5mm
- Maks. kontakt modstand: 10mOhm
- Husstørrelse: 29,5x14x15mm
- Elektrisk levetid: 6000 cykler
- Kontaktflader: Sølv nikkel legering
- Min. isolationsmodstand: 1000Mohm
- Produktserie: 600H
- Panel tykkelse: Maks. 4,5mm
Specificationns:
- Manufacturer: APEM
- Type of switch: Toggle
- Number of positions: 3
- Stable positions number: 3-position
- Contacts configuration: DP3T
- Switching method: ON-OFF-ON
- AC contacts rating (at resistance load): 10A / 250VAC
- Leads: 6,35x0,8mm connectors, or soldering
- Operating temperature: -20...55°C
- Kind of toggle: Round
- Mounting hole diameter: Ø12.2mm
- Knob height: 17,5mm
- Max. contact resistance: 10mOhm
- Body dimensions: 29,5x14x15mm
- Electrical life: 6000cycles
- Contact plating: silver nickel alloy
- Min. insulation resistance: 1000Mohm
- Panel thickness: Max 4,5mm
