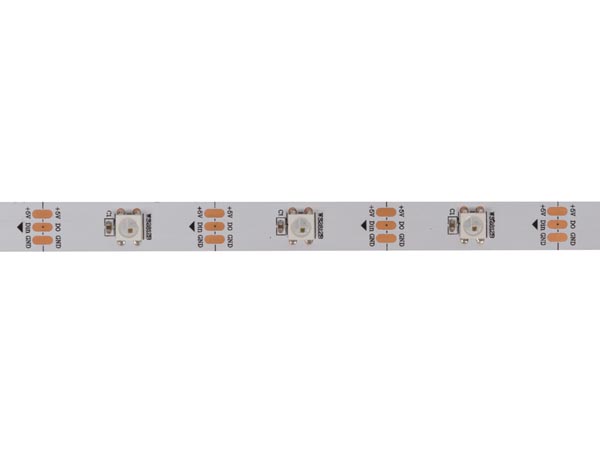

Prof. data RGB LED strip (IP20) - 5V, 30 LED/m (metervare)
Varenr:
H43297
EAN:
5410329680640
Disse professionelle LED-strips egner sig perfekt til vedvarende 24/7 drift, hvis de installeres professionelt i overensstemmelse med alle gældende normer. Denne data LED strip har 30 segmenter pr meter. Hvert segment indeholder én WS2812 RGB LED som kan styres individuelt via et digitalt signal. Der kræves kun 3 ledningsforbindelser for at tilslutte denne LED-strip (datasignal og strømforsyning). Datahastigheden er 400 Kbps eller 800 Kbps i højhastighedstilstand, som giver dig mulighed for at programmere flydende og hurtigt skiftende lyseffekter.
Egenskaber:
- Til idendørs brug
- Velegnet til dekorationslys, signallys, effektlys
- Montering: 3M selvklæbende tape
- Fleksibel printbånd (hvid)
Tekniske detaljer:
- IP-rating: IP20
- Coating: Nej
- Lysfarve: RGB
- Bølgelængder:
- Rød: 631 nm
- Grøn: 516 nm
- Blå: 468 nm
- Lysintensitet:
- Rød: 40 lm/m
- Grøn: 121 lm/m
- Blå: 32 lm/m
- LED type: 5050
- IC type: WS2812
- Lysvinkel: 120°
- Fælles anode:
- Sort ledning: Jord
- Rød ledning: 5 VDC
- Strømforbrug:
- Rød: 3 W/m
- Grøn: 3 W/m
- Blå: 3 W/m
- Størrelse (L x B): 5M x 10mm
- LED afstand: 33,3mm
- Klippemarkering: Mellem hver LED
- Operationel temperatur: -40...60°C
- Salgsenhed: Metermål (op til 5 meter på hel rulle)
The professional LED strips feature a high luminous flux and output. Every LED is carefully picked to offer white LED strips in 5 different colour temperatures. These LED strips are perfectly suited for a continuous 24/7 operation if installed professionally according to all applicable norms. This data LED strip has 300 segments. Each segment contains 1 WS2812 RGB LEDs and is controllable via a digital signal. Only 3 wire connections are needed to connect this LED strip. (data signal and power supply). The data speed is 400 Kbps or 800 Kbps in high speed mode which allows you to program fluent and fast changing light effects.
Features:
- Usage: indoor

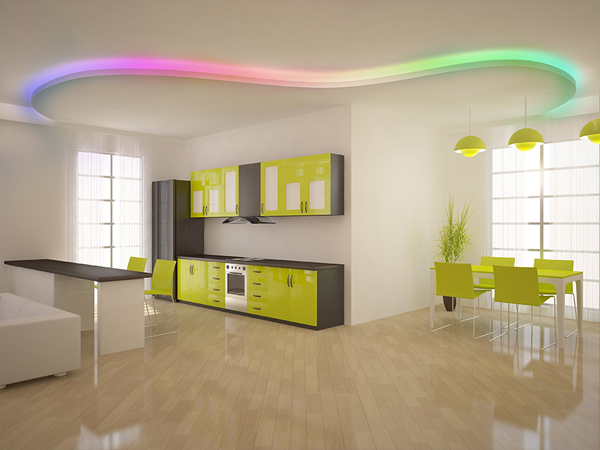

- Application: decoration, illumination, signalisation
- Fixation: 3M adhesive tape
- Flexible PCB (white)
- Optional accessories (see acessories)
Specifications:
- IP-rating: IP20
- Coating: No
- Light color: RGB
- Wawe lengths:
- Red: 631 nm
- Green: 516 nm
- Blue: 468 nm
- Lumious flux:
- Red: 40 lm/m
- Green: 121 lm/m
- Blue: 32 lm/m
- LED type: 5050
- IC type: WS2812
- Viewing angle: 120°
- Comon anode:
- Black wire: Ground
- Red wire: 5 VDC
- Power consumption:
- Red: 3 W/m
- Green: 3 W/m
- Blue: 3 W/m
- Dimensions (L x B): 5M x 10mm
- LED spacing: 33,3mm
- Can be cut every: 1 LED
- Operating temperature: -40...60°C
- Sales unit: Meter cut (up to 5 meter on full roll)
