Miniature relæ - 12VDC / 5A, 1 x slutte (SPST-NO)
Varenr:
H44396
EAN:
5705412443968
Tekniske detaljer:
- Producent (varemærke): HONGFA RELAY
- Relætype: Elektromagnetisk
- Relævariant: Subminiature

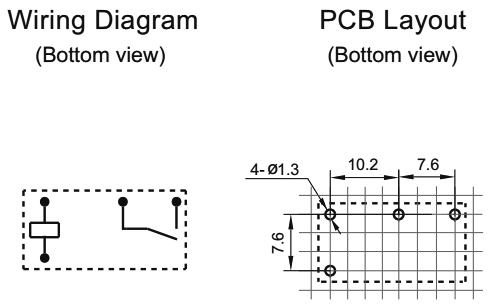

- Kontaktkonfiguration: SPST-NO
- Nominel spolespænding: 12V DC
- Maks. AC-kontaktstrøm (ved resistiv belastning): 5A / 250VAC
- Maks. DC-kontaktstrøm (ved resistiv belastning): 5A / 30VDC
- Maks. kontaktstrøm: 10A
- Skiftespænding: Maks. 30VDC, maks. 250VAC
- Montering: PCB
- Spolebestandighed: 720 ohm
- Operationel spole spænding: 9...18VDC

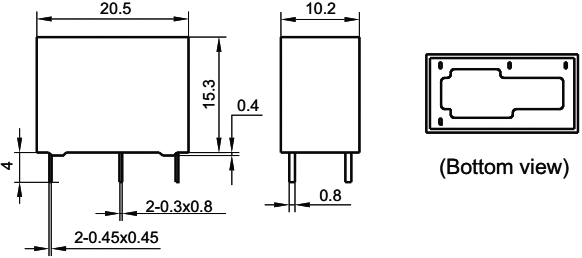

- Husstørrelse: 20,5x15,3x10,2mm
- Spoleffektforbrug: 200mW
- Operationel temperatur: -40...70°C
- Kontakt modstand: 100mOhm
- Kontaktmateriale: AgNi
- Benafstand: 7,6mm
Tekniske detaljer:
- Manufacturer: HONGFA RELAY
- Type of relay: Electromagnetic
- Relay variant: Subminiature
- Contacts configuration: SPST-NO
- Rated coil voltage: 12V DC
- AC contacts rating (at resistance load): 5A / 250VAC
- DC contacts rating (at resistance load): 5A / 30VDC
- Max. contact current : 10A
- Switched voltage: Max 30VDC, max. 250VAC
- Mounting: PCB
- Coil resistance: 720 ohm
- Coil voltage min.: 9V DC
- Coil voltage max.: 18V DC
- Body dimensions: 20.5 x 15.3 x 10.2mm
- Release time: 5ms
- Coil power consumption: 200mW
- Operating temperature: -40...70°C
- Contact resistance: 100m?
- Contact material: AgNi
- Terminal pitch: 7,6mm
