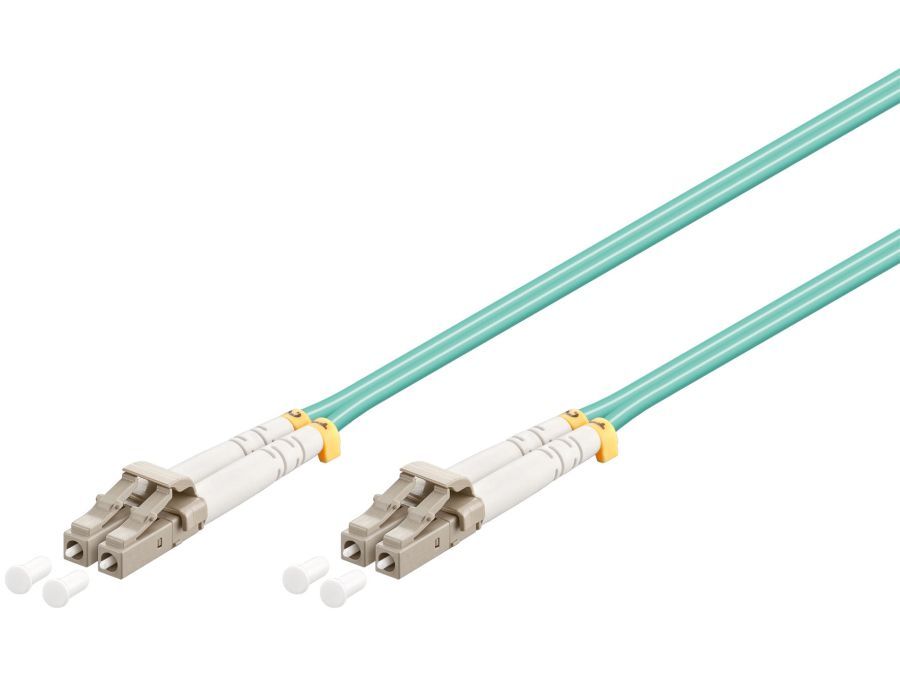

Fiberoptisk netværkskabel LC-LC multimode OM3 (0,5m)
Varenr:
H44716
EAN:
4040849957505
OM3 duplex patch kabel LC/LC. 50/125 LSZH-kompatibel multimode leder (aqua).
Egenskaber:
- Designet til brug på kontorer, industri og computercentre
- Udstyret i begge ender med et LC-duplex stik, inklusive beskyttende støvdæksel
- Kabelkappen er halogenfri og flammehæmmende
- Hvert kabel inkluderer en testprotokol
Tekniske detaljer:
- Fiberkvalitetsklasse: Multimode OM3
- Port 1, type: LC-stik
- Port 2, type: LC-stik
- Kabelaflastning: Ja
- Diameter af fiberkerne: 50 µ
- Diameter af fiber-ydre kappe: 125 µ
- Type: Duplex
- Ydre kappemateriale: PE (LSZH)
- Trykstyrke: 1000 N
- Bøjningsradius: 56mm
- Operationel temperatur: -20...60°C
- Stikmateriale: Plast
- Farve: Aqua
- Udvendig diameter: Ø2,8mm
- Bølgelængde: 850 nm
- Længde: 0,5m
- Maks. OM3 transmissionsområde:
- 100 Mbit/s: 2000m
- 1 Gbit/s: 550m
- 10 Gbit/s: 300m
- 25 Gbit/s: 70m
OM3 duplex patch cable LC/LC. 50/125 LSZH-compliant multimode conductor (aqua).
Features:
- Designed for use in offices, industry and computer centers
- Equipped on both ends with an LC-duplex connector, including protective dust cover
- The cable sheath is halogen-free and flame retardant
- Each cable includes a test protocol
Specifications:
- Fiber quality class: Multimode OM3
- Port 1, type: LC-plug
- Port 2, type: LC-plug
- Kink protection: Yes
- Diameter of fiber-core: 50 µ
- Diameter of fiber-outer cover: 125 µ
- Type: Duplex
- Outer sheath material: PE (LSZH)
- Compressive strength: 1000 N
- Bending radius: 56mm
- Operating temperature: -20 ...60°C
- Plug material: Plastic
- Color: Aqua
- Outer diameter: 2,8mm
- Wavelenght: 850 nm
- Length: 0.5 m
- Max. OM3 transmission ranges:
- 100 Mbit/s: 2000m
- 1 Gbit/s: 550m
- 10 Gbit/s: 300m
- 25 Gbit/s: 70m
