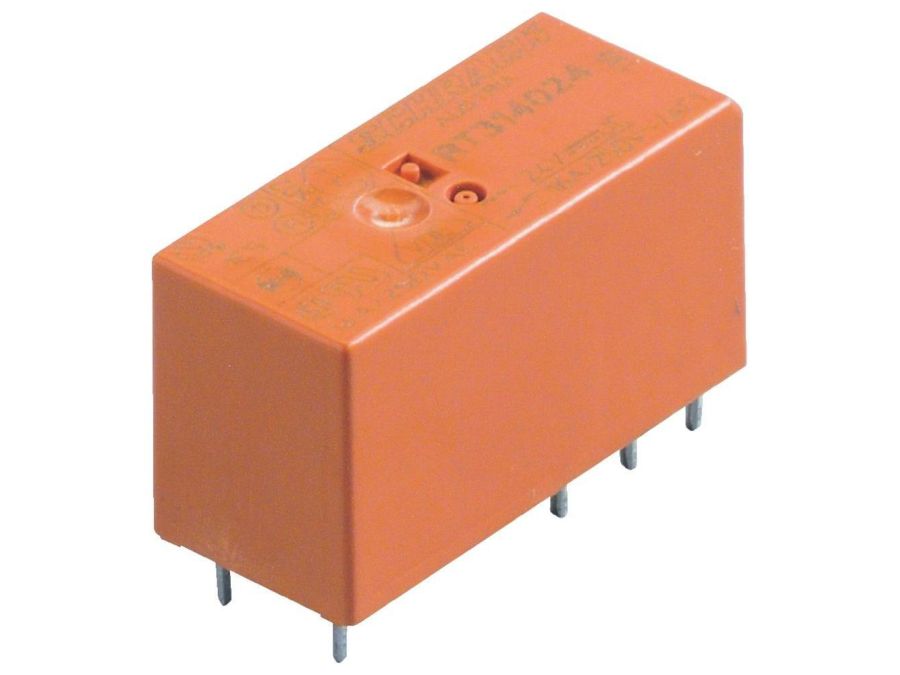

Vertikalt relæ - 12VDC 16A, 1 x skifte (SPDT), 8-ben (5mm)
Varenr:
H44774
EAN:
5705412447744
Tekniske detaljer:
- Producent: TE Connectivity
- Type relæ: Elektromagnetisk
- Relævariant: Miniature
- Kontaktkonfiguration: SPDT
- Nominel spolespænding: 12V DC
- Maks. AC kontaktstrøm (ved resistiv belastning): 16A / 250VAC
- Maks. DC kontaktstrøm (ved resistiv belastning): 16A / 24VDC
- Maks. kontaktstrøm: 16A
- Maks. spænding: 300VDC, 400VAC
- Montering: Printhul
- Spolemodstand: 360 ohm
- Min. spole spænding: 8,4V DC
- Spoleffektforbrug: 400mW
- Ingress Protection : IP40
- Mekanisk holdbarhed: 30000000 cykler
- Operationel temperatur: -40...70°C
- Relæserie: RT1
- Skiftkapacitet: 3kVA
- Kontaktmateriale: AgNi
- Husstørrelse: 29 x 15,7 x 12,7mm
- Benafstand: 5mm
- Antal ben: 8
- Maks. overspændingsstrøm: 25A
- Vægt: 14g
Specifications:
- Manufacturer: TE Connectivity
- Type of relay electromagnetic
- Contacts configuration: SPDT
- Rated coil voltage: 12V DC
- AC contacts rating (at resistance load): 16A / 250VAC
- DC contacts rating (at resistance load): 16A / 24VDC
- Max. contact current: 16A
- Max. switched voltage: 300VDC, 400VAC
- Relay variant: miniature
- Mounting: THT
- Coil resistance: 360 ohm
- Min coil voltage: 8,4V DC
- Coil power consumption: 400mW
- Ingress Protection: IP40
- Mechanical durability: 30000000 cycles
- Operating temperature: -40...70°C
- Relay series: RT1
- Switching capacity: 3kVA
- Contact material: AgNi
- Body dimensions: 29 x 15,7 x 12,7mm
- Terminal pitch: 5mm
- Number of pins: 8
- Max surge current: 25A
- Weight: 14g
