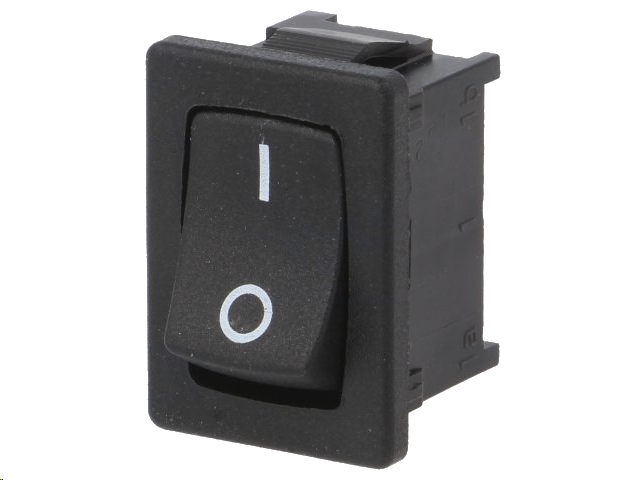

Vippekontakt - OFF-ON, 12A, 4,8mm spadestik, Sort
Varenr:
H46333
EAN:
5705412463331
Tekniske detaljer:
- Producent (varemærke): Marquardt
- Type kontakt: Vippe
- Kontaktkonfiguration: SPST
- Antal positioner: 2
- Antal stabile positioner: 2
- Skiftemetode: ON-OFF
- AC-kontaktstrøm (ved resistiv belastning): 12A / 250Vac
- IP-klassificering: IP40
- Maks. kontaktmodstand :: 100mOhm
- Antændelighedsklasse: UL94V-2
- Arbejdstemperatur: -20...100°C
- Elektrisk montage: 4,8x0,8mm spadestik (se tilbehør)
- Mekanisk montage: Panel
- Paneltykkelse: Maks. 3mm
- Knapmærkning: O-I
- Tasteknapfarve: Sort
- Paneludskæring: 19,8x12,9mm
- Størrelse: 21x15x11,7
Specifications:
- Manufacturer: Marquardt
- Type of switch: ROCKER
- Contacts configuration: SPST
- Number of positions: 2
- Stable positions number: 2
- Switching method: ON-OFF
- AC contacts rating (at resistance load): 12A / 250V AC
- Key button colour: black
- IP-rating: IP40
- Max. contact resistance:: 100mOhm
- Flammability rating: UL94V-2
- Operating temperature: -20...100°C
- Leads: 4,8x0,8mm connectors
- Panel thickness: Max. 3mm
- Button marking: O-I
- Mechanical mounting: Panel
- Panel cutout: 19,8x12,9mm
- Dimensions: 21x15x11,7
