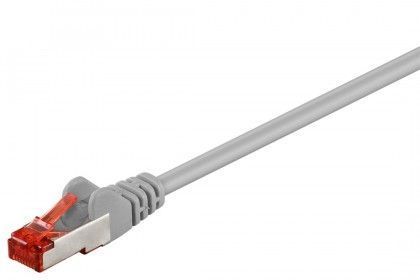

CAT6 netværkskabel - S/FTP (PiMF), CU, 2xRJ45, Grå (10m)

Dobbeltskærmet LAN / netværkskabel til tilslutning af netværkskomponenter med 2 x RJ45-stik

Egenskaber:

Stikforbindelser:
- Tilslutning 1, type: RJ45 han (8P8C)
- Tilslutning 2, type: RJ45 han (8P8C)
- Afskærmet: Ja
- Låsebeskyttelse: Begge ender
Kabelspecifikation:
- Kabel type: Rundt kabel
- Specifikation: CAT 6
- Afskærmningsklasse: S/FTP (PiMF)
- Lederkonstruktion: AWG28/7 (trådet)
- Ledermateriale: CU (kobber)
- Antal afskærmninger: 2 x
  - Folie (alu) PiMF
  - Ydre trådflet (alu)
- Kappemateriale: LSZH
- Kabeldiameter: Ø6mm
- Halogenfri: Ja
Maks. båndbredde: 250 MHz
Operationel temperatur: -20...65°C
Farve: Grå
Længde: 10m

Double shielded LAN/network cable to connect network components with 2 x RJ45 connectors
CAT 6tested
With 3µ gold plated PINs
Pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
With length indication on the slimline strain relief
With latch protection
Pair-sequence acc. to EIA/TIA 568B

Connections:
- Connection, type: RJ45 male (8P8C)
- Connection 2, type: RJ45 male (8P8C)
- Connection, shielding: yes
- Latch protection: both sides
Cable:
- Cable type: round cable
- Specification: CAT 6
- Shielding class: S/FTP (PiMF)
- Cable length: 10 m
- AWG: 28/7 (stranded)
- Cable sheath diameter (approx.): 6 mm
- Inner conductor material: CU (copper)
- Material cable sheath: LSZH
- Number of shieldings: 2 x
- Type 1, shielding: foil (alu) PiMF
- Type 2, shielding: braid (alu) overall shield
- Kink protection: both sides
- LSZH compliant: yes
Signal transmission:
- Max. bandwidth: 250 MHz
General:
- Color: grey
- Operating temperature from: -20°C...65°C
