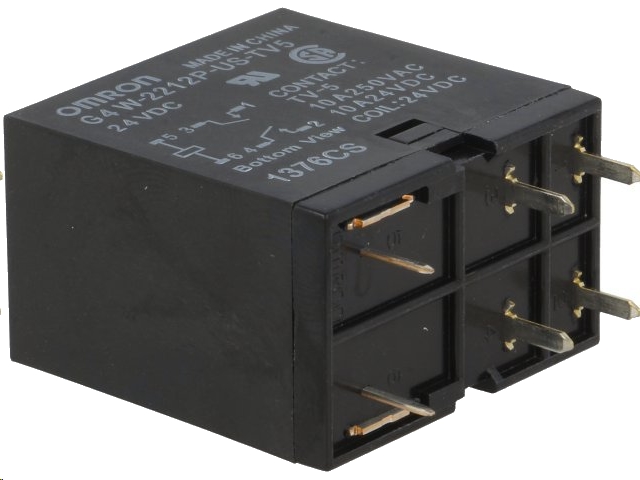

Vertikalt relæ - 24VDC / 10A, 2 x slutte (DPST-NO)
Varenr:
H53383
EAN:
5705412533836
Tekniske detaljer:
- Producent (varemærke): OMRON
- Relæ type: Elektromagnetisk
- Kontaktkonfiguration: DPST-NO
- Nominel spolespænding: 24Vdc
- Maks. kontaktstrøm: 10A
- Relæserie: G4W
- Relævariant: Power
- Operationel temperatur: -25...55°C
- Montering: PCB
- Spolemodstand: 720 Ohm
- Spændingsforbrug: 800 mW
- Husstørrelse: 30,5x19,5x30,5mm
- Maks. skiftet spænding: 125Vdc, maks. 250Vac
- Maks. AC-kontaktstrøm (ved resistiv belastning): 10A / 250Vac
- Maks. DC-kontaktstrøm (ved resistiv belastning): 10A / 24Vdc
- Kontaktmodstand: 30mOhm
- Antal ben: 6
- Benafstand: 7,6mm
- Montage: Printhul
- Spolestrøm: 33,3mA
Erstatning for / alternativ til: Matsushita JC2aD-DC24V.
Specifications:
- Manufacturer: OMRON
- Type of relay: Electromagnetic
- Contacts configuration: DPST-NO
- Rated coil voltage: 24V DC
- Contact current max.: 10A
- Relay series: G4W
- Relay variant: Power
- Operating temperature: -25...55°C
- Mounting: PCB
- Coil resistance: 720 Ohm
- Coil power consumption: 800mW
- Body dimensions: 30,5x19,5x30,5mm
- Switched voltage: Max. 125V DC, max. 250V AC
- AC contacts rating (at resistance load): 10A / 250V AC
- DC contacts rating (at resistance load): 10A / 24V DC
- Contact resistance: 30mOhm
- No. of pins: 6
- Leads: For PCB
- Coil current: 33,3mA
