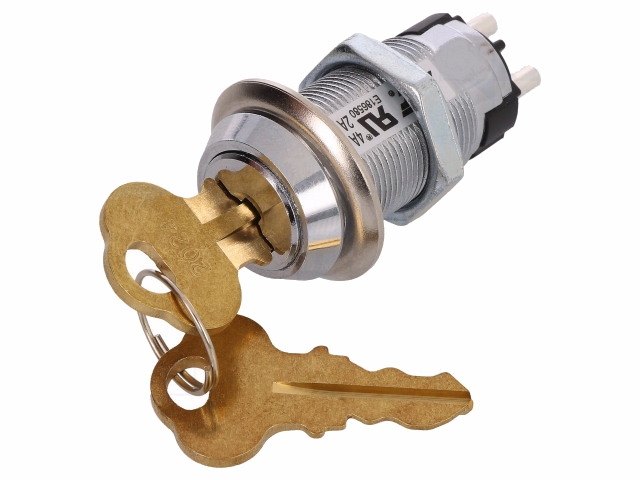

Nøglekontakt - 1P OFF-(ON), Ø19mm (SPST)
Varenr:
H54028
EAN:
5705412540285
Tekniske detaljer:
- Type kontakt: Nøglekontakt
- Skiftemetode: OFF-(ON)
- Kontaktkonfiguration: SPST
- Antal positioner: 2
- Antal stabile positioner: 1
- Monteringshul diameter: Ø19mm
- Nøgleform: flad
- Type nøgle: Symmetrisk
- Husmateriale: Zinklegering
- Maks. AC-kontaktstrøm (ved resistiv belastning): 4A (125Vac)
- Mekanisk rotationsvinkel: 90°
- Antal terminaler: 2
- Samlet længde: 49mm
- Kontaktflader: Forsølvet
- Terminalplader: Forsølvet
Specifications:
- Type of switch: Key switch
- Switching method (item in brackets is instantaneous): OFF-(ON)
- Contacts configuration: SPST
- Number of positions: 2
- Number of stable positions: 1
- Mounting hole diameter: Ø19mm
- Key shape: Flat
- Kind of key: Symmetrical
- Body material: Zinc alloy
- AC contacts rating at resistance load: 4A (125V AC)
- Mechanical rotation angle: 90°
- Number of terminals: 2
- Overall length: 49mm
- Contact plating: Silver plated
- Terminals plating: Silver plated
