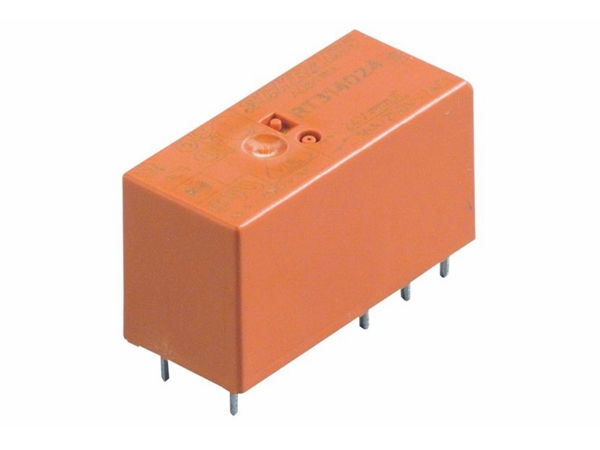

Vertikalt relæ - 230VAC / 8A, 2 x skifte (DPDT)
Varenr:
H55043
EAN:
5705412550437
Tekniske detaljer:
- Producent (varemærke): TE Connectivity
- Relæ type: Elektromagnetisk
- Kontaktkonfiguration: DPDT
- Nominel spolespænding: 230Vac
- AC-kontaktstrøm (ved resistiv belastning): 8A (250Vac)
- DC-kontaktstrøm (ved resistiv belastning): 8A (30Vdc)
- Maks. kontaktstrøm: 8A
- Maks. skiftespænding: 300Vdc, 400Vac
- Relævariant: Miniature, monostabil
- Montering: Printhul
- Spolemodstand: 32,5 kOhm
- Min. spolespænding: 173Vac
- Aktiveringstid: 8ms
- Sliptid: 6ms
- Spole strømforbrug: 750mVA
- Husstørrelse: 29x12,7x15,7mm
- IP-klassificering: IP40
- Operationel temperatur: -40...70°C
- Vægt: 14g
- Relæserie: RT2
- Kontaktmateriale: AgNi 90/10
- Benafstand: 5mm
- Højde: 15,7mm
- Antal ben: 8
Specifications:
- Manufacturer: TE Connectivity
- Type of relay: Electromagnetic
- Contacts configuration: DPDT
- Rated coil voltage: 230V AC
- AC contacts rating at resistance load: 8A (250V AC)
- DC contacts rating at resistance load: 8A (30V DC)
- Contact current max.: 8A
- Switched voltage: Max. 300V DC, max. 400V AC
- Relay variant: Miniature, monostable
- Mounting: PCB
- Coil resistance: 32.5kΩ
- Coil voltage min.: 172.5V AC
- Operate time: 8ms
- Body dimensions: 29x12.7x15.7mm
- Release time: 6ms
- Coil power consumption: 750mVA
- IP-rating: IP40
- Operating temperature: -40...70°C
- Weight: 14g
- Relay series: RT2
- Contact material: AgNi 90/10
- Terminal pitch: 5mm
- Height: 15.7mm
- Number of pins: 8
