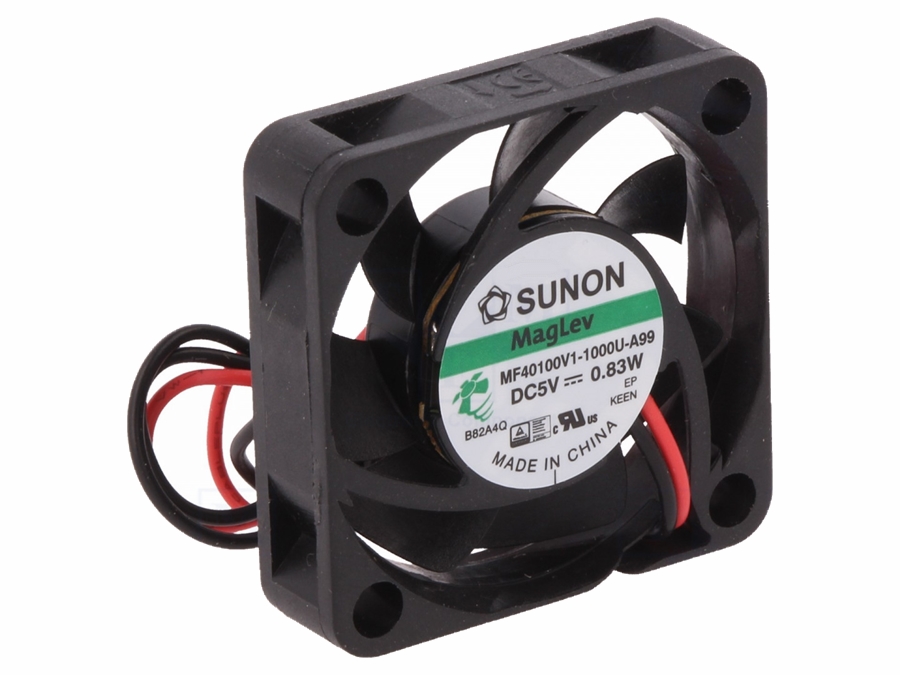

DC blæser - 40x40x10mm 5Vdc / 0,83W Vapo, 2 ledn.
Varenr:
H55157
EAN:
5705412551571
Tekniske detaljer:
- Producent (varemærke): SUNON
- Type ventilator: DC
- Type fan: Axial
- Forsyningsspænding: 5Vdc
- Ventilatormål: 40x40x10mm
- Strømforbrug: 0,83W
- Strøm: 0,138A
- Luftflow: 13,52m3/time
- Støjniveau: 27,3 dBA
- Lejetype: Vapo
- Rotationshastighed: 7000 rpm
- Vægt: 15,6g
- Min. isoleringsmodstand: 10 Mohm
- Propel-materiale: termoplast
- Kabinetmateriale: Termoplast
- Isoleringsklasse: A
- Ledninger: 2
- Ledningslængde: 300mm
- Operationel temperatur: -10...70°C
- Statisk tryk: 4,83mm H2
- Motor: Børsteløs DC
- Brandbarhed: UL94V-0
- Yderligere funktioner: Autogenstart
- Driftsspænding: 3,5...6V
- Ledningsstørrelse: 26AWG
Specifications:
- Manufacturer: SUNON
- Type of fan: DC
- Kind of fan: Axial
- Supply voltage: 5V DC
- Fan dimensions: 40x40x10mm
- Power consumption: 0.83W
- Current rating: 0.138A
- Fan efficiency: 13.52m3/h
- Noise level: 27.3dBA
- Kind of Bearing: Vapo
- Rotational rate/speed: 7000rpm
- Weight: 15.6g
- Min. insulation resistance: 10MΩ
- Impeller material: Thermoplastic
- Enclosure material: Thermoplastic
- Insulation class: A
- Leads: 2 leads
- Operating temperature: -10...70°C
- Cable length: 300mm
- Static pressure: 4.83mm H2
- Fan motor: Brushless DC motor
- Flammability rating: UL94V-0
- Additional functions: Autorestart
- Operating voltage: 3.5...6V
- Wire size: 26AWG
