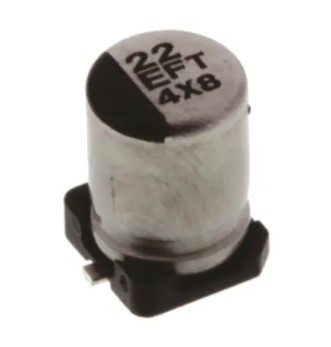

SMD elektrolytkondensator - 22uF / 25V, B hus (FT)
Varenr:
H55404
EAN:
5705412554046
Tekniske detaljer:
- Producent (varemærke): PANASONIC
- Type kondensator: Elektrolytisk, Lav impedans
- Kapacitans: 22 uF
- Driftsspænding: 25Vdc
- Hus: B
- ESR-værdi: 850mΩ
- Kondensatorserie: FT
- Montering: SMD
- Tolerance: ±20%
- Operationel temperatur: -55...105°C
- Husstørrelse: Ø4x5,8mm
- Kondensatorfunktioner: Høj temperatur reflow
- Levetid: 2000 timer
- Overholder normen: AEC-Q200
Specifications:
- Manufacturer: PANASONIC
- Type of capacitor: Electrolytic
- Kind of capacitor: Low impedance
- Capacitance: 22µF
- Operating voltage: 25V DC
- Case: B
- ESR value: 850mΩ
- Capacitors series: FT
- Mounting: SMD
- Tolerance: ±20%
- Operating temperature: -55...105°C
- Body dimensions: Ø4x5.8mm
- Capacitors features: High temperature reflow
- Service life: 2000h
- Conform to the norm: AEC-Q200
