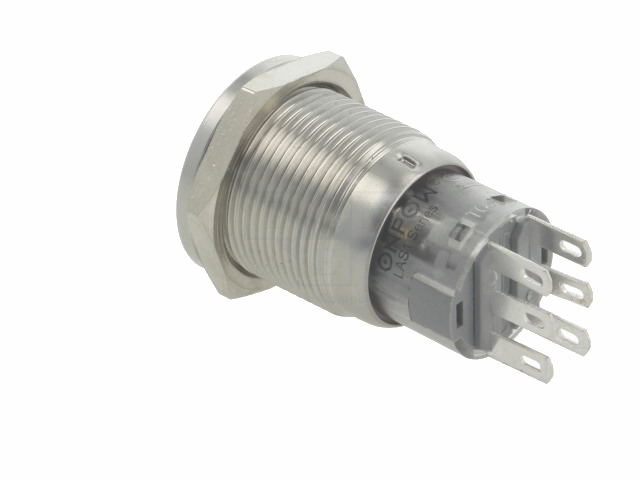

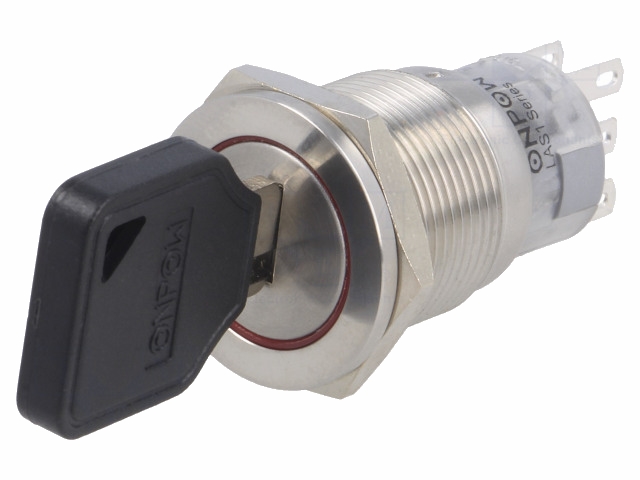

Nøglekontakt - 3P, ON-ON-OFF, Ø19mm (3PST)
Varenr:
H55866
EAN:
5705412558662
Tekniske detaljer:
- Producent (varemærke): ONPOW
- Type kontakt: Nøglekontakt
- Kontaktkonfiguration: OFF-ON-ON - linje 1, ON-ON-OFF - linje 2
- Skiftemetode: 3PST
- Skifter funktioner: Nøglen kan fjernes i alle positioner
- Antal positioner: 3
- Antal stabile positioner: 3
- Monteringshul diameter: Ø19mm

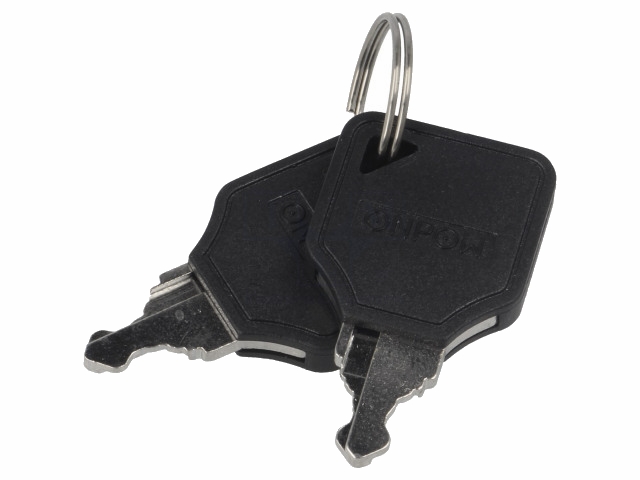

- Nøgleform: flad
- Type nøgle: Symmetrisk
- Husmateriale: Rustfrit stål
- AC-kontakts vurdering ved resistiv belastning: 0,5A (220Vac)
- DC-kontakter vurdering ved modstand belastning: 1A (24Vdc)
- Mekanisk rotationsvinkel: 45°
- Antal terminaler: 6
- Elektrisk levetid: 50000 cyklusser
- Kabler: Til lodning
- Kontaktmateriale: Sølvlegering
- Mekanisk holdbarhed: 200000 cykler
- Testspænding: 2kV
- Maks. kontaktmodstand: 50m?
- Operationel temperatur: -20...55°C
- IP-klassificering: IP40
- Belysning: Ingen
- Husfarve: Sølv
- Ringform: flad
Specifications:
- Manufacturer: ONPOW
- Type of switch: Key switch
- Contacts configuration: OFF-ON-ON - line 1, ON-ON-OFF - line 2
- Switching method: 3PST
- Switches features: The key can be removed at any position
- Number of positions: 3
- Mounting hole diameter: Ø19mm
- Key shape: Flat
- Kind of key: Symmetrical
- Body material: Stainless steel
- AC contacts rating at resistance load: 0.5A (220V AC)
- DC contacts rating at resistance load: 1A (24V DC)
- Mechanical rotation angle: 45°
- Number of terminals: 6
- Electrical life: 50000 cycles
- Leads: For soldering
- Contact material: Silver alloy
- Mechanical durability: 200000 cycles
- Test voltage: 2kV
- Max. contact resistance:: 50mΩ
- Operating temperature: -20...55°C
- IP-rating: IP40
- Illumination: None
- Body colour: Silver
- Ring shape: Flat
- Stable positions number: 3
