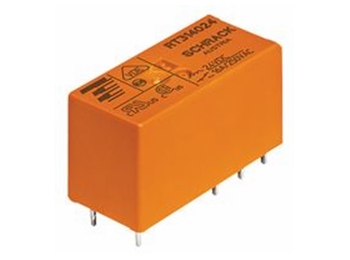

Miniature relæ - 12VDC / 8A, 2 x skifte (DPDT)
Varenr:
H56106
EAN:
5705412561068
Tekniske detaljer:
- Producent (varemærke): TE Connectivity
- Relæ type: Elektromagnetisk
- Relævariant: Miniature, monostabil

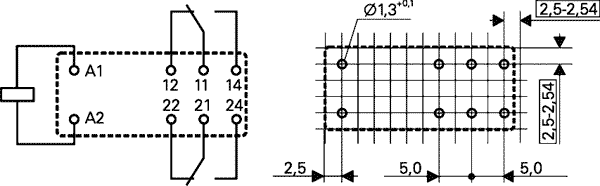

- Skiftemetode: DPDT
- Nominel spolespænding: 12Vdc
- AC-kontaktstrøm (ved resistiv belastning): 8A 250Vac
- DC-kontaktstrøm (ved resistiv belastning): 8A 30Vdc
- Maks. kontaktstrøm: 8A
- Maks. skiftespænding: 300Vdc, 400Vac
- Montering: Printhul eller sokkel (se tilbehør)
- Spolemodstand: 360 ohm
- Min. spolespænding: 8,4Vdc
- Betjeningstid: 8ms

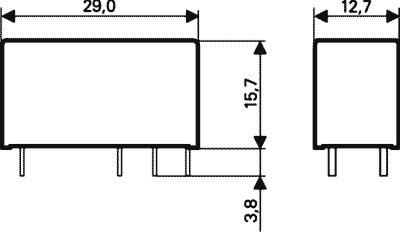

- Husstørrelse: 29x12.7x15.7mm
- Sliptid: 6ms
- Spændingsforbrug: 400 mW
- IP-klassificering: IP40
- Operationel temperatur: -40...85°C
- Vægt: 14g
- Relæserie: RT2
- Kontaktmateriale: AgNi 90/10
- Benafstand: 5mm
- Højde: 15,7 mm
Også kendt som: 6-1393243-3.
Specifications:
- Manufacturer: TE Connectivity
- Type of relay: Electromagnetic
- Switching method: DPDT
- Rated coil voltage: 12V DC
- AC contacts rating (at resistive load): 8A 250V AC
- DC contacts rating (at resistive load): 8A 30V DC
- Contact current max.: 8A
- Switched voltage: Max. 300V DC, max. 400V AC
- Relay variant: Miniature, monostable
- Mounting: PCB
- Coil resistance: 360 ohm
- Coil voltage min.: 8.4V DC
- Operate time: 8ms
- Body dimensions: 29x12.7x15.7mm
- Release time: 6ms
- Coil power consumption: 400mW
- IP-rating: IP40
- Operating temperature: -40...85°C
- Weight: 14g
- Relay series: RT2
- Contact material: AgNi 90/10
- Terminal pitch: 5mm
- Height: 15.7mm
