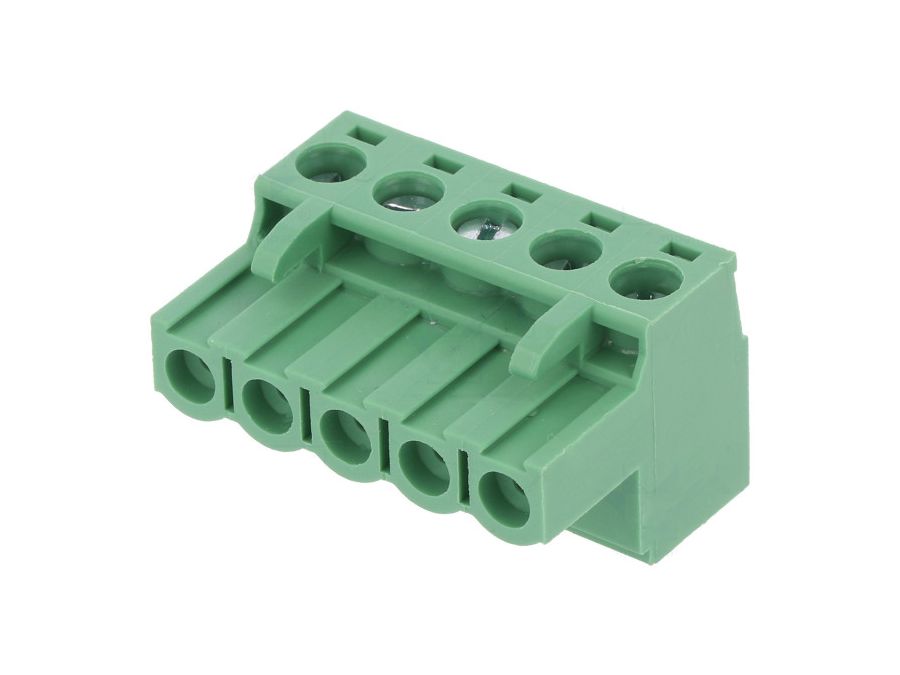

Indstik skrueterminal - 5P hun, 5mm, 2,5mm², Grøn
Varenr:
H57897
EAN:
5705412578974
Tekniske detaljer:
- Producent (varemærke): DEGSON ELECTRONICS
- Type stik: Indstik skrueterminal
- Benafstand: 5mm
- Variant: Hun
- Elektrisk montage: Burklemme, skrueterminal
- Farve: Grøn
- Nominel spænding: 320V
- Mærkestrøm: 20A
- Benkonfiguration: 1x5
- Husmateriale: PA66
- Låsesystem: Smæklås
- Brandbarhed: UL94V-0
- Overholder normen: CE, UL
- Operationel temperatur: -40...105°C
- Kontaktmateriale: Fosforbronze
- Ledningsstørrelse: 2,5mm2 (28AWG...12AWG)
Specifications:
- Manufacturer: DEGSON ELECTRONICS
- Type of connector: Pluggable terminal block
- Contacts pitch: 5mm
- Variant: Female
- Electrical mounting: Cage clamp, screw terminal
- Colour: Green
- Rated voltage: 320V
- Current rating: 20A
- Type of pin configuration: 1x5
- Body material: PA66
- Locking system: Latch
- Flammability rating: UL94V-0
- Conform to the norm: CE, UL
- Operating temperature: -40...105°C
- Contact material: Phosphor bronze
- Wire size: 2.5mm2 (28AWG...12AWG)
