ESP32 PoE board - Antenne, WiFi, BLE, -40 / +85C
Varenr:
H58114
EAN:
5705412581141
ESP32-PoE er et IoT WIFI / BLE / Ethernet-udviklingskort med Power-Over-Ethernet-funktion. PoE håndteres af Si3402-B-chip, der er IEEE 802.3-kompatibel, inklusive pre-standard (ældre) PoE-understøttelse. PoE-chippen kræver mindst 37Vdc for at fungere. Kortet tager strøm fra Ethernet-kablet og kan udvides med sensorer og aktuatorer. Perfekt løsning til Internet-of-Things-projekter.

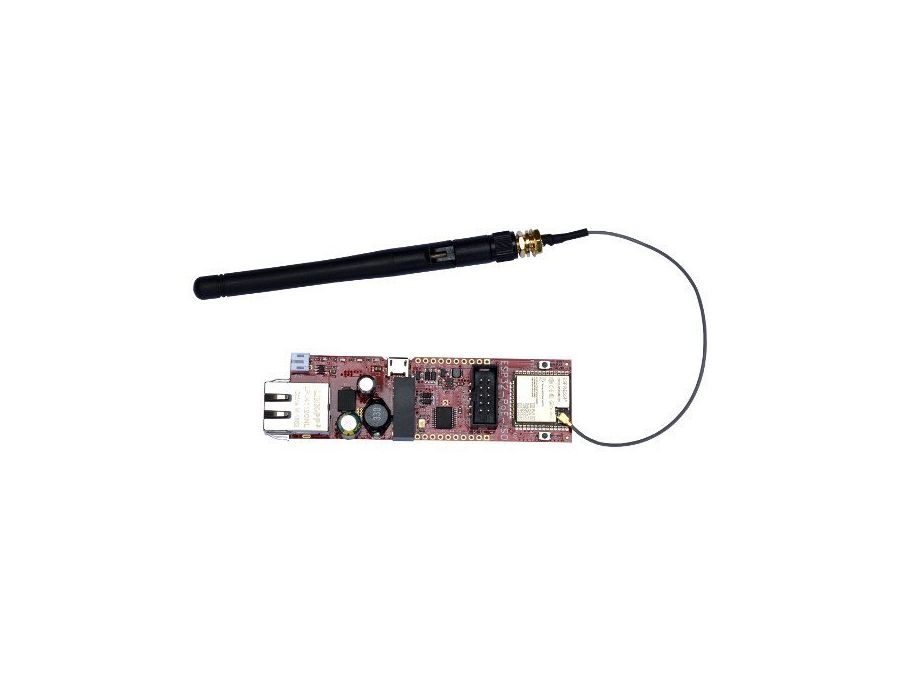

ESP32-POE-ISO-EA har modul med U.FL-stik og ekstern antenne tilsluttet, som muliggør montering i metalkasse.
Egenskaber:
- ESP32-WROOM-32 - WiFi og bluetooth-modul
- CE-RED og LVD-certificering
- Design med lav effekt - 200uA forbrug i standby/deep sleep
- Ethernet 100Mb interface med IEEE 802.3 PoE support
- 3000Vdc galvanisk isolering mellem PoE Ethernet-delen og kortets strømforsyningskredsløb
- Micro USB-stik til ESP32-programmering
- MicroSD-kort fungerer i 1 bit-tilstand (3 flere GPIO'er)
- LiPo batterioplader med LiPo batteristik
- Batteriniveau monitorstift på ADC
- Ekstern pin til registrering af strømforsyning på ADC
- DC-DC 2W 5V / 400mA
- UEXT-stik
- Bruger-knap
- Genstarts knap
- To forlængerstik, 0,1" trin fordelt på 1"
Tekniske detaljer:
- Producent (varemærke): OLIMEX
- Komponenter: ESP32-WROOM-32, Si3402-B
- Størrelse: 100x28mm
- Kryptering: WPA2-PSK, WPA2
- Antal knapper: 2
ESP32-PoE is an IoT WIFI/BLE/Ethernet development board with Power-Over-Ethernet feature. The PoE is handled by Si3402-B chip that is IEEE 802.3-compliant, including pre-standard (legacy) PoE support. The PoE chip requires at least 37V DC to operate successfully. The board takes power from the Ethernet cable and can be expanded with sensors and actuators. Perfect solution for Internet-of-Things projects.
ESP32-POE-ISO-EA has module with U.FL connector and external antenna attached, which allow mounting in metal box.
Features:
- ESP32-WROOM-32 - WiFi and bluetooth module
- CE-RED and LVD certification
- Low power design - 200uA consumption in deep sleep
- Ethernet 100Mb interface with IEEE 802.3 PoE support
- 3000VDC galvanic insulation between the PoE Ethernet part and board's power supply circuit
- Micro USB connector for ESP32 programming
- MicroSD card working in 1 bit mode (3 more GPIOs)
- LiPo battery charger with LiPo battery connector
- Battery level monitor pin on ADC
- External power supply detection pin on ADC
- DC-DC 2W 5V/400mA
- UEXT connector
- User button
- Reset button
- Two extension connectors, 0.1" step spaced at 1"
Specifications:
- Manufacturer: OLIMEX
- Components: ESP32-WROOM-32, Si3402-B
- Dimensions: 100x28mm
- Ciphering: WPA2-PSK, WPA2
- Number of buttons: 2
