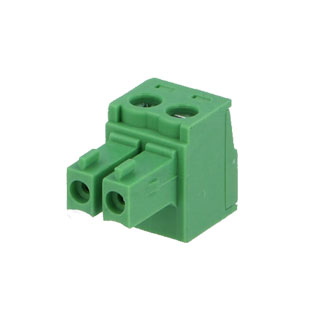

Indstik skrueterminal - 2P hun 3,5mm 0,5-1,5mm², Grøn

Varenr: H58700
EAN: 5705412587006
https://el-grossisten.dk/web/image/product.template/35279/image_1920?unique=951c830

Tekniske detaljer:

  • Producent (varemærke): DEGSON ELECTRONICS
  • Type: Indstik skrueterminal
  • Kontaktafstand: 3,5mm
  • Antal ben: 2
  • Benkonfiguration: 1x2
  • Orientering: Lige
  • Variant: Hun
  • Mekanisk montage: Til kabel
  • Elektrisk montage: Burklemme, skrueterminal
  • Farve: Grøn
  • Spænding: 250V
  • Maks. strøm: 7A
  • Husmateriale: PA66
  • Låsesystem: Friktionslås
  • Antændelsesgrad: UL94V-0
  • Operationel temperatur: -40...105°C
  • Kontaktmateriale: Fosforbronze
  • Ledningsstørrelse: 28AWG...16AWG
  • Trådtværsnit: 0,5...1,5mm2

Specifications:

  • Manufacturer: DEGSON ELECTRONICS
  • Type of connector: Pluggable terminal block
  • Contacts pitch: 3.5mm
  • Number of ways: 2
  • Spatial orientation: Straight
  • Connector: Plug
  • Kind of connector: Female
  • Mechanical mounting: For cable
  • Electrical mounting: Cage clamp, screw terminal
  • Colour: Green
  • Rated voltage: 250V
  • Current rating: 7A
  • Type of pin configuration: 1x2
  • Body material: PA66
  • Locking system: Friction lock
  • Flammability rating: UL94V-0
  • Conform to the norm: CE, UL, VDE
  • Operating temperature: -40...105°C
  • Contact material: Phosphor bronze
  • Number of terminals: 2
  • Wire size: 28AWG...16AWG
  • Wire cross section: 0.5...1.5mm2
Læs mere

DKK 17,44 17.44 DKK DKK 17,44 Moms Inkluderet

DKK 13,95 Moms Inkluderet

Not Available For Sale

Denne kombination eksistere ikke.

0.0 Stk på lager
4 Stk på fjernlager - Forventet levering om ca. 1-3 dage
