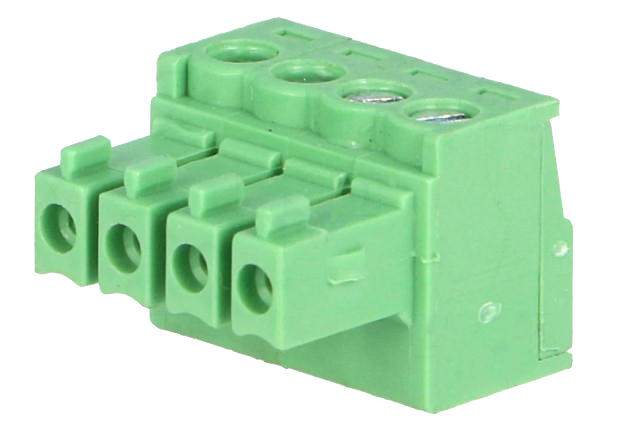

Indstik skrueterminal - 4P hun 3,5mm 0,5-1,5mm², Grøn
Varenr:
H58717
EAN:
5705412587174
Tekniske detaljer:
- Producent (varemærke): DEGSON ELECTRONICS
- Type: Indstik skrueterminal
- Kontaktafstand: 3,5mm
- Antal ben: 4
- Benkonfiguration: 1x4
- Orientering: Lige
- Variant: Hun
- Mekanisk montage: Til kabel
- Elektrisk montage: Burklemme, skrueterminal
- Farve: Grøn
- Spænding: 250V
- Maks. strøm: 7A
- Husmateriale: PA66
- Låsesystem: Friktionslås
- Antændelsesgrad: UL94V-0
- Operationel temperatur: -40...105°C
- Kontaktmateriale: Fosforbronze
- Ledningsstørrelse: 28AWG...16AWG
- Trådtværsnit: 0,5...1,5mm2
Specifications:
- Manufacturer: DEGSON ELECTRONICS
- Type of connector: Pluggable terminal block
- Contacts pitch: 3.5mm
- Number of terminals: 4
- Type of pin configuration: 1x4
- Spatial orientation: Straight
- Kind of connector: Female
- Mechanical mounting: For cable
- Electrical mounting: Cage clamp, screw terminal
- Colour: Green
- Rated voltage: 250V
- Current rating: 7A
- Body material: PA66
- Locking system: Friction lock
- Flammability rating: UL94V-0
- Operating temperature: -40...105°C
- Contact material: Phosphor bronze
- Wire size: 28AWG...16AWG
- Wire cross section: 0.5...1.5mm2
