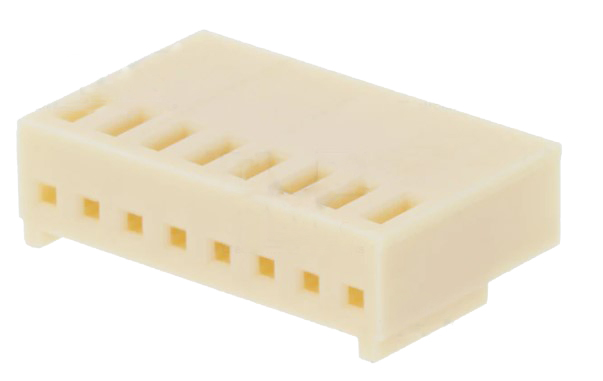

Ledning-til-print stikhus - NS25, 8pol (1x8) hun 2,54mm
Varenr:
H58762
EAN:
5705412587624
Tekniske detaljer:
- Producent (varemærke): NINIGI
- Type stik: Ledning-til-print, hun
- Stikserie: NS25
- Benafstand: 2,54mm
- Antal ben: 8
- Ben-konfiguration: 1x8
- Tilslutningsvariant: Uden kontaktben (se tilbehør)
- Mekanisk montage: til kabel
- Maks. spænding: 250V
- Strøm: 3A
- Antændelighedsklasse: UL94V-0
- Operationel temperatur: -25...85°C
- Kapslingsmateriale: Polyamid
- A-dimension: 17,78mm
- B-dimension: 20,8mm
Specifications:
- Manufacturer: NINIGI
- Connector: Plug
- Type of connector: Wire-board
- Kind of connector: Female
- Connector series: NS25
- Contacts pitch: 2.54mm
- Number of pins: 8
- Type of pin configuration: 1x8
- Mechanical mounting: For cable
- Rated voltage: 250V
- Current rating: 3A
- Flammability rating: UL94V-0
- Operating temperature: -25...85°C
- Enclosure material: Polyamide
- A dimension: 17.78mm
- B dimension: 20.8mm
