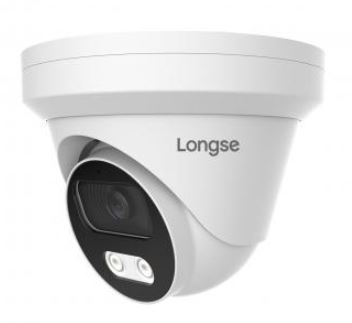

IP Dome netværkskamera - 4MP, 25m IR, PoE (IP67)

Varenr: H58844

EAN: 5705412588447

4MP inde- og udendørs dome IP netværkskamera med 25m IR nattesyn. Understøtter PoE (strømforsyning via netværkskablet).

Egenskaber:

1/2.8" SONY Starvis bagbelyst CMOS-sensor
H.264 / H.264+ / H.265 / H.265+ videokomprimering
3,6mm fast linse
IR-rækkevidde ud til 25m
Robust IP67 udendørs metalkabinet
Tekniske detaljer:
- Kamera:
  - Billedsensor: 1 / 2,8 "SONY Starvis Bagbelyst CMOS
  - Opløsning: 4MP
  - Effektive pixels: 2616 (H) x 1964 (V)
  - Kompression: H.264 / H.264 + / H.265 / H.265 + / JPEG / AVI / MJPEG
  - TV-system: PAL / NTSC
  - Elektronisk lukkertid: Auto: PAL 1 / 25-1 / 10000 sek .; NTSC 1 / 30-1 / 10000 sek.
  - Minimun-belysning: 0,01Lux
  - Signal/støjforhold:> 52dB
  - Scanningssystem: Progressivt
  - Videooutput: Netværk
  - Reset-knap: Valgfri
- Linse:
  - Fokuslængde: 3,6mm
  - Fokus kontrol: Fast
  - Objektivtype: Fast
- Nattesyn:
  - Infrarød LED: 42µ x 2 stk.
  - Infrarød afstand: 25m
  - IR-status: Automatisk kontrol
  - IR-tændt Smart, manuel og tidsindstillet tilstand
- Netværk:
  - Ethernet: RJ45 (10 / 100Base-T)
  - Protokol: TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, UDP
  - ONVIF Support: ONVIF 2.4 (Profil S / T / G)
  - P2P: Ja, support QR-kode
  - POE: Valgfri / intern, understøtter IEEE 802.3af
  - Videoforsinkelse: 0,3 sek. (inden for Lan)
  - Main stream 1: 2592x1944 ved 20fps, 2560 * 1920 ved 20fps
  - Main stream 2: 2560x1440 ved 30fps
  - Main stream 3: 1920x1080 ved 30fps, 1280 * 720 ved 30fps
  - Sub stream 1: 720x480 ved 20 fps, 720 * 480 ved 30 fps
  - Browser: IE8-11, Google Chrome, Firefox, Mac Safari
  - Smartphone: iPhone, iPad, Android, Android Pad
- Kamerafunktioner:
  - Dag / nat: Farve / sort / hvid (IR-cut)
  - Billedkonfig: Mætning / lysstyrke / kontrast / skarphed, spejl, 3D NR, hvidbalance, FLK (flimmerstyring)
  - Korridor mønster: Support
  - BLC: Support
  - WDRDWDR: 50dB
  - IR Cut Filter: Ja
  - Bevægelsesregistrering: Support
  - Privacy Masking: 3 rektangulær zone
  - Optagelsestilstand: NVR / CMS / Web
  - Audio: Valgfri
  - Menusprog: Kinesisk forenklet, kinesisk traditionel, engelsk, bulgarsk, polsk, arabisk, tysk, russisk, fransk, koreansk, portugisisk, japansk, tyrkisk, spansk, hebraisk, italiensk, nederlandsk, tjekkisk, vietnamesisk
- Generel:
  - Hus: Metal
  - IP-klassificering
    : IP67
  - Operationel temperatur: -20...60°C (RF 95% maks.)
  - Forsyningsspænding: 12Vdc ±10%
  - Strømforbrug: 700mA
  - Størrelse: Ø109 x H93mm
  - Vægt: 600g

4MP indoor and outdoor dome IP network camera with 25m IR night vision. Supports PoE (power over ethernet).

Features:

1/2.8"SONY Starvis Back-illuminated CMOS sensor
H.264/H.264+/H.265/H.265+ Compression Method
3.6mm Fixed Lens
IR Distance 25m Max.
IP67 Outdoor Metal Case
Specifications:
- Camera:
  - Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS
  - Resolution: 4MP
  - Effective Pixels: 2616 (H) x 1964 (V)
  - Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
  - TV System: PAL/NTSC
  - Electronic Shutter Time: Auto: PAL 1/25-1/10000 Sec.; NTSC 1/30-1/10000 Sec.
  - Minimun Illumination: 0.01Lux
  - S/N Ratio: >52dB
  - Scanning System: Progressive
  - Video Output: Network
  - Reset Button: Optional
- Lens:
  - Focus Length: 3.6mm
  - Focus Control: Fixed
  - Lens Type: Fixed
- Night Vision:
  - Infrared LED: 42µ x 2 pcs.
  - Infrared Distance: 25m
  - IR Status: Auto Control
  - IR Power OnSmart, Manual & Timed mode
- Network:
  - Ethernet: RJ45 (10/100Base-T)
  - Protocol: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,UDP
  - ONVIF Support: ONVIF 2.4 (Profile S/T/G)
  - P2P: Yes, Support QR Code
  - POE: Optional/Internal, Support IEEE 802.3af
  - Video Delay: 0.3 sec. (within the Lan)
  - Main Stream 1: 2592x1944@20fps, 2560*1920@20fps
  - Main Stream 2: 2560x1440@30fps
  - Main Stream 3: 1920x1080@30fps, 1280*720@30fps
  - Sub Stream 1: 720x480@20fps, 720*480@30fps
  - Brower: IE8-11, Google Chrome, Firefox , Mac Safari
  - Smart Phone: iPhone, iPad, Android, Android Pad
- Camera Features:
  - Day/Night: Color/ B&W (IR-cut)
  - Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK (Flicker Control)
  - Corridor Pattern: Support
  - BLC: Support
  - WDRDWDR: 50dB
  - IR Cut Filter: Yes
  - Motion Detection: Support
  - Privacy Masking: 3 Rectangular Zone
  - Recording Mode: NVR/CMS/Web
  - Audio: Optional
  - Languages: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
- General:
  - Housing: Metal
  - IP-rating
    : IP67
  - Operating temperature: -20...60°C (RH 95% max.)
  - Supply voltage: 12Vdc±10%
  - Power consumption: 700mA
  - Dimensions: Ø109 x H93mm
  - Weight: 600g
