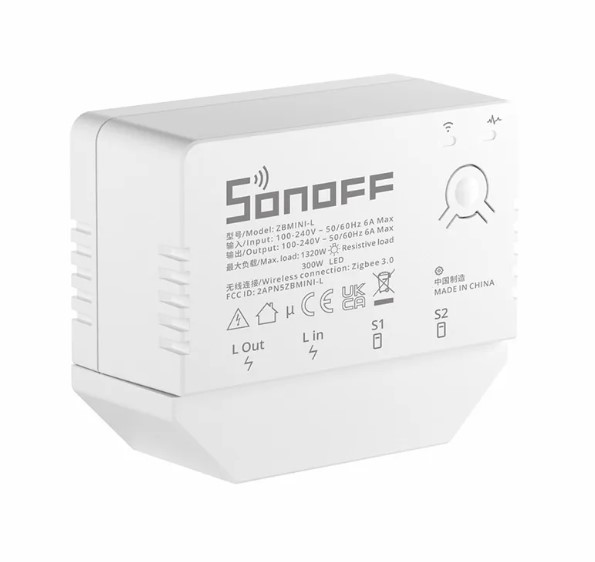

Zigbee ZBMini-L - 2-vejs Smart Switch

ZBMINI-L er en smart switch, der nemt kan gøre dit eksisterende vægudtag smart uden brug af en neutral ledning. Den er kompatibel med forskellige hubs, herunder SONOFF Zigbee Bridge Pro, SONOFF ZBBridge, SONOFF Zigbee Dongle Plus, Amazon Hub og Samsung Hub. Understøtter eksterne kontakter såsom vippekontakt og vægkontakt med trykknap. Den lille og kompakte smarte switch er kompatibel med forskellige slags afbryderbokse, herunder den mindste afbryderboks af EU-type. Den er kompatibel med Alexa, Google Assistant, SmartThings og Alice. Den har samme funktion som andre smarte kontakter såsom smarte scener, APP-kontrol, tidsplan og power-on tilstand.

ZBMINI-L virker med bevægelses- eller vindues-/dørsensorer, som SNZB-01, SNZB-02, SNZB-03 og SNZB-04, for at opnå automatisering uden manuel styring (se tilbehør). ZBMINI-L gør det muligt for det tilsluttede lys at fungere normalt selv så lavt som 3W uden at flimre og genstarte, selvom der ikke er installeret et anti-flimmer-modul i det. Udover den grundlæggende CE- og FCC-certificering har ZBMINI-L også TÜV-certificeringen, hvilket garanterer din sikkerhed under installation og i brug.

Egenskaber:

• Ingen neutral ledning påkrævet: Enkelt strømførende ledning Zigbee 3.0 protokol smart switch
• Ekstern kontakt: Understøtter vippekontakt og vægkontakt med trykknap
• Kompatibel med andre Zigbee Hubs: Understøtter Zigbee hub udviklet i henhold til standardprotokollen, inklusive Amazon Alexa Echo Speaker (med indbygget Zigbee Hub), Samsung SmartThings Hub, SONOFF Zigbee Bridge Pro, ZBBridge, SONOFF Zigbee Dongle Plus
• To-vejs kontrol: Ved at installere ZBMINI-L i en af dine eksisterende to- eller multi-vejs kontrol samledåser for at gøre det tilsluttede lys smart
• Sikkerhed og pålidelig: Udover CE og FCC har ZBMINI-L også bestået TÜV-certificeringen
• Leveres med DIN skinne holder og Eng. brugermanual

Tekniske detaljer:

• Input: 100-240V 50/60Hz 6A Max
• Trådløs tilslutning: Zigbee 3.0
• Virkerer med: Amazon Alexa, Google Assistant, Samsung Smarthings, IFTTT
• Certificeret overensstemmelse: CE, FCC, TÜV
• Driftstemperatur: -10°C~40°C
• Driftsfugtighed: 5% - 95% RH ikke-kondenserende
• Materiale: PC V0
• Størrelse: 45 x 54 x 24mm

ZBMINI-L is a smart switch module that can easily make your existing wall switch smart without the use of a neutral wire. It is compatible with different hubs, including SONOFF Zigbee Bridge Pro, SONOFF ZBBridge, SONOFF Zigbee Dongle Plus, Amazon Hub and Samsung Hub. Supporting external switches such as rocker light switch and push-button wall switch. The small and compact smart switch is compatible with different kinds of switch boxes, including the smallest EU type switch box. It is compatible with Alexa, Google Assistant, SmartThings, and Alice. It has the same function as other smart switches such as smart scenes, APP control, timing schedule and power on sate.

ZBMINI-L works with motion or window/door sensors, like SNZB-01, SNZB-02, SNZB-03 and SNZB-04, to achieve automation without manual control (see accessories). ZBMINI-L allows for the connected light to work normally even as low as 3W without flickering and restart despite no anti-flicker module being installed in it. In addition to the basic CE and FCC certification, ZBMINI-L has also passed the TÜV certification, ensuring your safety during installation and use.

Features:

• No Neutral Wire Required: Single live wire Zigbee 3.0 protocol smart switch
• External Switch: Supports rocker light switch and push-button wall switch
• Compatible with other Zigbee Hubs: Supports Zigbee hub developed according to the standard protocol, including Amazon Alexa Echo Speaker (with built-in Zigbee Hub), Samsung SmartThings Hub, SONOFF Zigbee Bridge Pro, ZBBridge, SONOFF Zigbee Dongle Plus
• Two-way Control: By installing ZBMINI-L in one of your existing two- or multi-way control junction boxes to make the connected light smart
• Safety and reliable: In addition to the CE, FCC certification, ZBMINI-L has also passed the TÜV certification
• Included in delivery is DIN rail mount and English user manual

Specifications:

• Electrical Rating: 100-240V 50/60Hz 6A Max
• Wireless Connectivity: Zigbee 3.0
• Works With: Amazon Alexa, Google Assistant, Samsung Smarthings, IFTTT
• Certified Compliance: CE, FCC, TÜV
• Operating Temperature: -10°C~40°C
• Operating Humidity: 5% - 95% RH non-condensing
• Casing Material: PC V0
• Størrelse: 45 x 54 x 24mm
