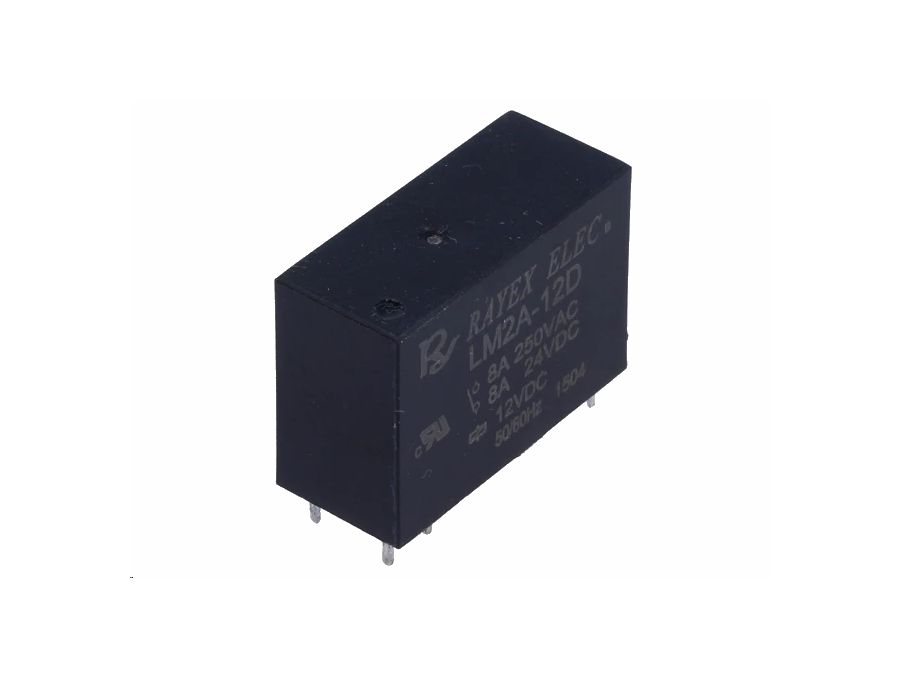

Vertikalt relæ - 12VDC / 5A, 2 x slutte (DPST-NO)
Varenr:
H59252
EAN:
5705412592529
Tekniske detaljer:
- Producent (varemærke): Recoy AYEX ELECTRONICS
- Relæ type: Elektromagnetisk
- Kontaktkonfiguration: DPST-NO
- Nominel spolespænding: 12Vdc
- Maks. AC kontaktstrøm (ved resistiv belastning): 5A 250Vac
- Maks. DC kontaktstrøm (ved resistiv belastning): 5A 30Vdc
- Maks. kontaktstrøm: 5A
- Maks. koblingsspænding: 30Vdc / 250Vac
- Relævariant: Miniature
- Montering: Printhul
- Spolemodstand: 270 Ohm
- Husstørrelse: 29x15,5x12,5mm
- Triggertid: 15ms
- Frigivelsestid: 10ms
- Spolens strømforbrug: 530mW
- Operationel temperatur: -40...80°C
- Relæserie: LM2
- Kontaktmodstand: 100 mOhm
- Kontaktmateriale: AgCdO
- Benafstand: 5mm
- Spolestrøm: 44,4 mA
- Antal ben: 6 (5mm afstand)
Specifications:
- Manufacturer: Recoy AYEX ELECTRONICS
- Type of relay: Electromagnetic
- Contacts configuration: DPST-NO
- Rated coil voltage: 12Vdc
- AC contacts rating @R: 5A 250V AC
- DC contacts rating @R: 5A 30Vdc
- Contact current max.: 5A
- Switched voltage: Max. 30Vdc, max. 250V AC
- Relay variant: Miniature
- Mounting: PCB
- Coil resistance: 270 Ohm
- Operate time: 15ms
- Body dimensions: 29x15.5x12.5mm
- Release time: 10ms
- Coil power consumption: 530mW
- Operating temperature: -40...80°C
- Relay series: LM2
- Contact resistance: 100 mOhm
- Contact material: AgCdO
- Terminal pitch: 5mm
- Coil current: 44.4mA
- No. of pins: 6 (5mm pitch)
