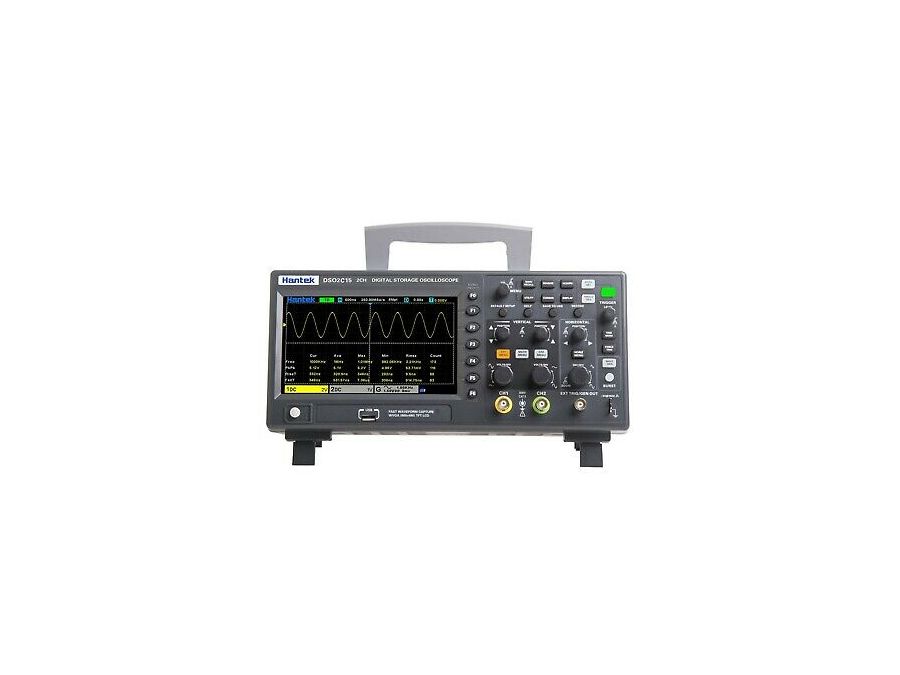

Digital oscilloskop - 150MHz 2 kanal 1Gsps
Varenr:
H59293
EAN:
5705412592932
DSO2C15 oscilloskop dækker 150MHz båndbredden og giver realtid op til 1GSa/s. 7" farve TFT LCD samt WINDOWS-stil interfaces og menuer for nem betjening. Hvad mere er, giver de mange menuoplysninger og de enkle knapper optimal måleinformation. De multifunktionelle knapper og de praktiske genvejstaster hjælper dig med at spare en masse tid under betjening. Funktionen Auto Scale lader dig registrere sinus- og firkantkurver automatisk.
Tekniske detaljer:
- Producent (varemærke): HANTEK
- Type oscilloskop: Digital
- Antal kanaler: 2
- Sampling: 1 Gsps
- Hukommelsesrekordlængde: 4Mpts/ch
- Displaytype: Farve, TFT 7"
- Trigger modes: Automatisk, normal, single
- Trigger: CAN/LIN, faldende kant, IIC, impulsbredde, interval, overarbejde, mønster, stigende kant, hældning, SPI, UART, videosignal, vindue
- Tidsgrundlag: 2n...1ks/div
- Maks. indgangsspænding: 300V
- Lodret opløsning: 12bit
- Indgangskobling: AC, DC, GND
- Grænseflade: USB
- Serie: DSO2000
- Stigningstid: = 2,4 ns
- Indgangsimpedans: 1MO/20pF
- Strømforsyning: 100...120Vac, 45...440Hz, 120...240Vac, 45...66Hz
- I overensstemmelse med norm: EN61010 300V CAT II
- Operationel temperatur: 0...50°C
- Vægt: 1,9kg
- Størrelse: 318x110x150mm
- Bånd: 150MHz
DSO-2C15 oscilloscop covers the 150MHz bandwidth, and provide the real-time up to 1GSa/s. In addition, it has a 7" color TFT LCD as well as WINDOWS-style interfaces and menus for easy operation. Whats more, the plenty menu information and the easy-to-operate buttons allow you to gain information as much as possible in measurement; the Multifunctional Knobs and the powerful shortcut keys help you save a lot of time in operation; the Auto Scale function lets you detect sine and square waves automatically.
Specifications:
- Manufacturer: HANTEK
- Type of oscilloscope: Digital
- Number of channels: 2
- Sampling: 1Gsps
- Memory record length: 4Mpts/ch
- Type of display: Colour, TFT 7"
- Trigger modes: Automatic, normal, single
- Trigger: CAN/LIN, falling-edge, IIC, impulse width, interval, overtime, pattern, rising-edge, slope, SPI, UART, video signal, window
- Time base: 2n...1ks/div
- Max. input voltage: 300V
- Vertical resolution: 12bit
- Input coupling: AC, DC, GND
- Interface: USB
- Series: DSO2000
- Rise time: =2.4ns
- Input impedance: 1MO/20pF
- Power supply: 100...120Vac, 45...440Hz, 120...240Vac, 45...66Hz
- Conform to the norm: EN61010 300V CAT II
- Operating temperature: 0...50°C
- Weight: 1.9kg
- Body dimensions: 318 x 110 x 150mm
- Band: 150MHz
