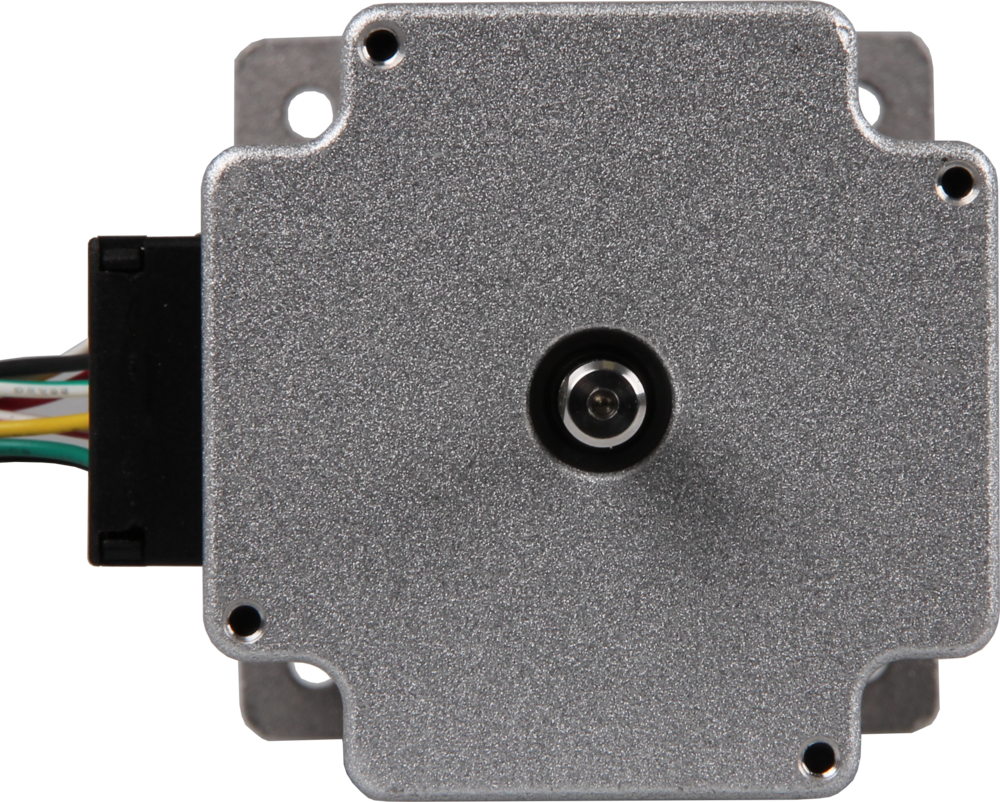

Hybrid stepper motor NEMA23 - 2,73V / 4,2A, 3Nm
Varenr:
H59660
EAN:
4250236815480
NEMA23-stepmotor kan optimalt bruges til opgaver inden for områderne automatisering, CNC (f.eks. graveringslasere, 3D printere, fræsemaskiner osv.) eller robot. Med dobbeltakslen kan denne motor bruges, eksempelvis, i forbindelse med en encoder.
Tekniske detaljer:
- Specifikation: 60STH86-3008B
- Akseldiameter: Primær 8, Sekundær 6,35mm
- Tilslutning: 4 startkabler
- Trin pr. omdrejning: 200
- Holdemoment: 3 Nm
- Nominel spænding: 2,73V
- Nominel strøm: 4,2A
- Trinvinkel: 1,8°
- Antal faser: 4
- Ledninger: Spole 1A: Rød, Spole 1B: Gul, Spole 2A: Blå, Spole 2B: Sort, Spole 3A: Hvid, Spole 3B: Orange, Spole 4A: Brun, Spole 4B: Grøn
- Størrelse: 59 x 59 x 86mm
- Vægt: 1,4kg

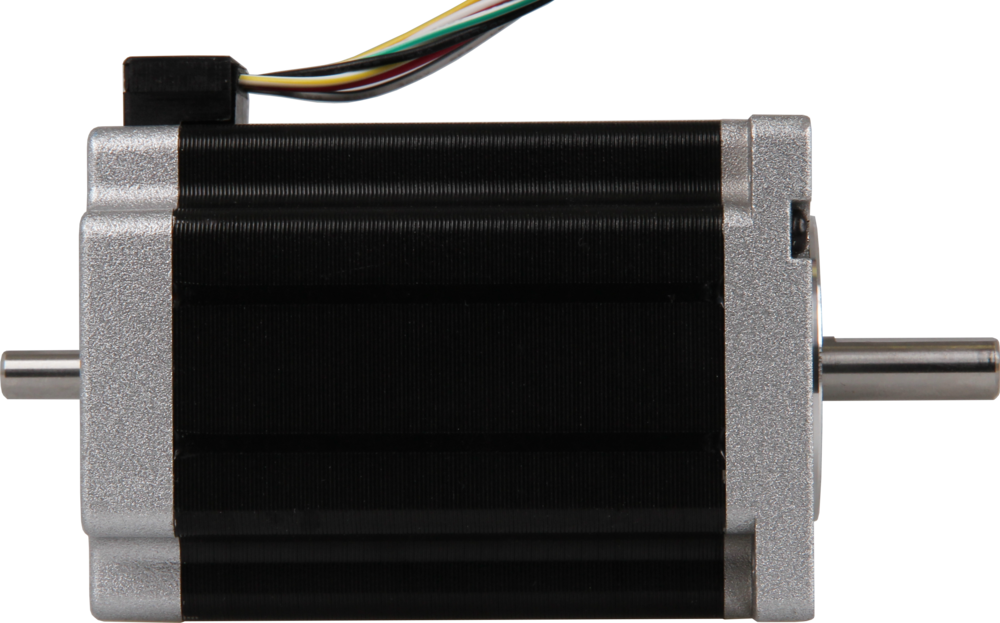

The NEMA23-01 stepper motor can be optimally used for tasks in the areas of automation, CNC (f.e. engraving lasers, 3D printers, milling machines, etc.) or robotic. With the double shaft, this motor can be used in, for instance, connection with an encoder.
Specifications:
- Specification: 60STH86-3008B
- Shaft diameter: Primary 8, Secondary 6.35 mm
- Connection: 4 jumper cables
- Steps per revolution: 200
- Holding torque: 3 Nm
- Rated voltage: 2.73V
- Rated current: 4.2A
- Step angle: 1.8°
- Amount of Phases: 4
- Wiring: Coil 1A: Red, Coil 1B: Yellow, Coil 2A: Blue, Coil 2B: Black, Coil 3A: White, Coil 3B: Orange, Coil 4A: Brown, Coil 4B: Green
- Dimensions: 59 x 59 x 86mm
- Weight: 1,4kg
