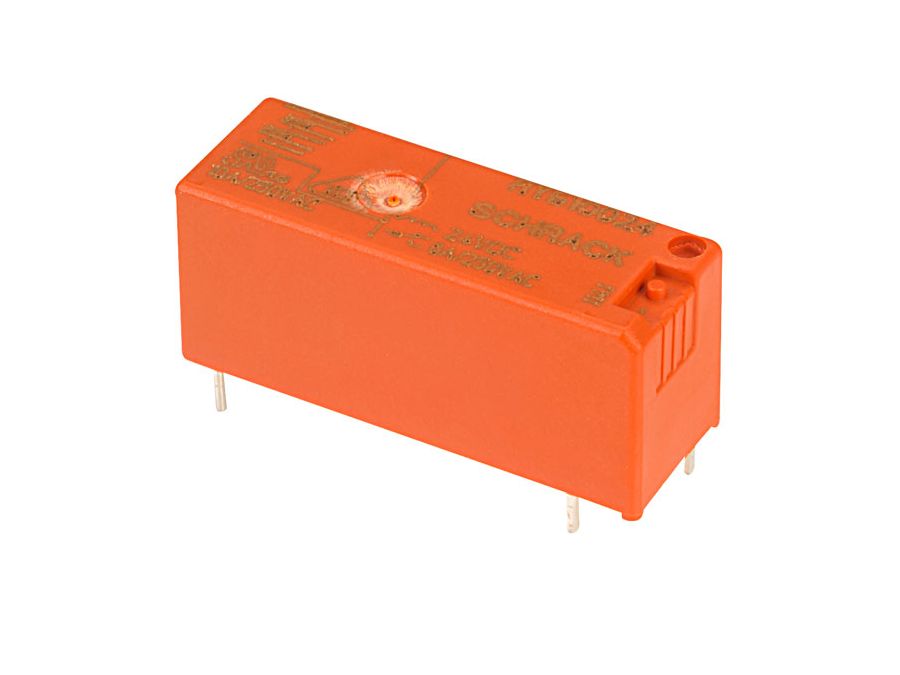

Miniature relæ - 12VDC 8A, 1 x skifte (SPDT), 5-ben (3,2mm)
Varenr:
H59714
EAN:
5705412597142
Tekniske detaljer:
- Producent (varemærke): TE Connectivity
- Type relæ: Elektromagnetisk
- Kontaktkonfiguration: SPDT
- Nominel spolespænding: 12Vdc
- AC kontaktstrøm (ved resistiv belastning): 8A 250Vac
- DC kontaktstrøm (ved resistiv belastning): 8A 30Vdc
- Maks. kontaktstrøm: 8A
- Maks. skiftespænding: 300Vdc, maks. 400Vac
- Relævariant: Miniature
- Montering: PCB
- Spolemodstand: 620 Ohm
- Skiftetid: 9 ms
- Husstørrelse: 28,5x10,1x12,3mm
- Slippetid: 5 ms
- Spole strømforbrug: 220mW
- IP -klassificering: IP67
- Mekanisk holdbarhed: 30000000 cyklusser
- Operationel temperatur: -40...85°C
- Vægt: 8g
- Relæ serie: RYII
- Omskiftningskapacitet: 2000VA
- Kontaktmateriale: AgNi
- Terminalafstand: 3,2mm
- Spolestrøm: 19,3mA
Specifications:
- Manufacturer: TE Connectivity
- Type of relay: Electromagnetic
- Contacts configuration: SPDT
- Rated coil voltage: 12Vdc
- AC contacts rating @R: 8A 250V AC
- DC contacts rating @R: 8A 30Vdc
- Contact current max.: 8A
- Switched voltage: Max. 300Vdc, max. 400V AC
- Relay variant: Miniature
- Mounting: PCB
- Coil resistance: 620 Ohm
- Operate time: 9ms
- Body dimensions: 28.5x10.1x12.3mm
- Release time: 5ms
- Coil power consumption: 220mW
- IP rating: IP67
- Mechanical durability: 30000000 cycles
- Operating temperature: -40...85°C
- Weight: 8g
- Relay series: RYII
- Switching capacity: 2000VA
- Contact material: AgNi
- Terminal pitch: 3.2mm
- Coil current: 19.3mA
