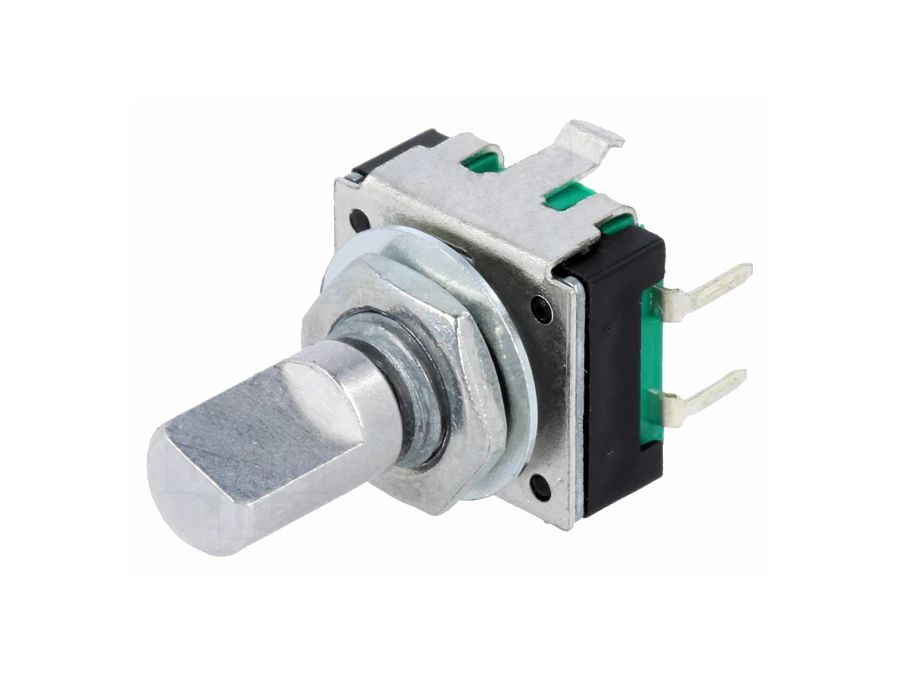

Rotary Encoder - 24 trin, trykknap funk., 15mm (6mm D-aksel)
Varenr:
H59811
EAN:
5705412598118
Tekniske detaljer:
- Producent (varemærke): BOURNS
- Type encoder: Inkrementel
- Montering: Printhul
- Opløsning: 24imp evol.
- Antal positioner: 24
- Udgangssignal: To fase A og B
- Mekanisk holdbarhed: 30000 cyklusser
- Driftsspænding: 5Vdc
- Maks. driftsstrøm: 10mA
- Operationel temperatur: -30...70°C
- Akseloverflade: D fjeder
- Aksellængde: 15mm
- Akseldiameter: Ø6mm
- Skæredybde: 1,5mm
- Nøgleslag: 0,5mm
- Encoders funktioner: Med knap
Specifications:
- Manufacturer: BOURNS
- Type of encoder: Incremental
- Mounting: THT
- Resolution: 24imp evol.
- Number of positions: 24
- Output signal: Two phase A and B
- Mechanical durability: 30000 cycles
- Operating voltage: 5Vdc
- Max. operating current: 10mA
- Operating temperature: -30...70°C
- Shaft surface: D spring
- Shaft length: 15mm
- Shaft diameter: 6mm
- Cut depth: 1.5mm
- Key stroke: 0.5mm
- Encoders features: With button
