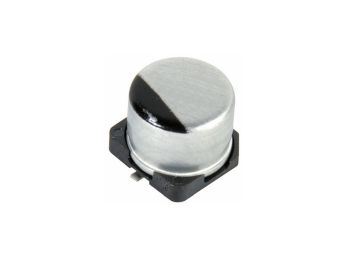

SMD elektrolytkondensator - 150uF / 10V, D hus, 105°C (FK)
Varenr:
H59884
EAN:
5705412598842
Tekniske detaljer:
- Producent (varemærke): NICHICON
- Kondensatortype: Elektrolytisk
- Montering: SMD
- Kapacitans: 150µF
- Driftsspænding: 10Vdc
- Husstørrelse: Ø6,3x5,8mm
- Tolerance: ±20 %
- Levetid: 2000 timer
- Impedans: 0,36O
- Operationel temperatur: -55...105°C
- Kondensatorserie: UCD
- Maks. fremadgående impulsstrøm: 240mA
Specifications:
- Manufacturer: NICHICON
- Type of capacitor: Electrolytic
- Mounting: SMD
- Capacitance: 150µF
- Operating voltage: 10Vdc
- Body dimensions: Ø6.3x5.8mm
- Tolerance: ±20%
- Service life: 2000h
- Impedance: 0.36O
- Operating temperature: -55...105°C
- Capacitors series: UCD
- Max. forward impulse current: 240mA
