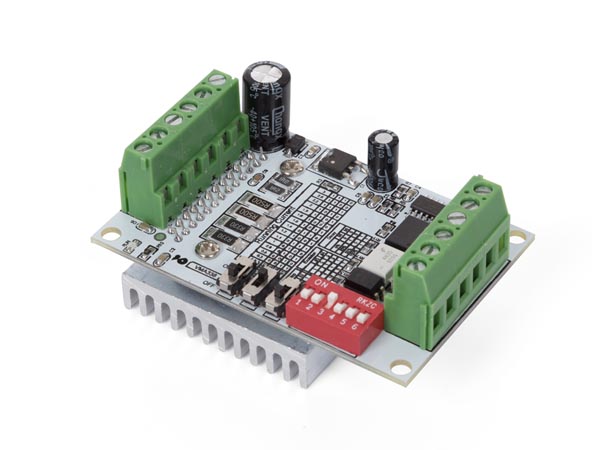

TB6560 3A Stepmotor Driver modul
Varenr:
H60280
EAN:
5410329729950
Egenskaber:
- 6N137 højhastigheds OptoCoupler for at sikre høj hastighed uden at miste steps
- Til 42,57,86 stepper inden for 3A 2/4-faset / 4 leder / 6 leder stepmotor
- Automatisk half-decay
- Excitationstilstand: Synkronisering, halvt trin, 1/8 trin, 1/16 trin
- Det aktuelle niveau kan justeres for at imødekomme dine applikationsbehov
- Stor køleplade for god varmeafledning
- Overophednings- og overstrømsbeskyttelseskredsløb for at sikre optimal ydeevne
Tekniske detaljer:
- Driftsspænding: 10 til 35 Vdc
- Nominel udgangsstrøm: ±3 A - peak 3,5 A
- Størrelse: 50x75x35mm
- Vægt: 80g
Features:
- 6N137 high-speed OptoCouple to ensure high speed without losing steps
- For 42,57,86 Stepper within 3A 2/4 -phase / 4 wire / 6 wire stepper motor
- Automatic half-decay
- Excitation mode: Synchronizing, half step, 1/8 step, 1/16 step
- Current level is adjustable to meet your application needs
- Large heat sink for good heat dissipation
- Overheating and over-current protection circuit to ensure optimal performance
Specifications:
- Operating voltage: 10 to 35 VDC
- Rated output current: ± 3 A - peak 3.5 A
- Dimensions: 50 x 75 x 35 mm
- Weight: 80 g
