Telestat til gulvvarmestyring - 230V, NO (IP54)
Varenr:
H60368
EAN:
5705412603683
Telestat (termomotor) til gulvvarmesystemer, hvor telestaten er installeret på gulvvarmemanifolderne og styres af rumtermostater for åbning og lukning af individuelle kredsløb/sløjfer. Denne telestat er 230V NO (normally open).
Tekniske detaljer:

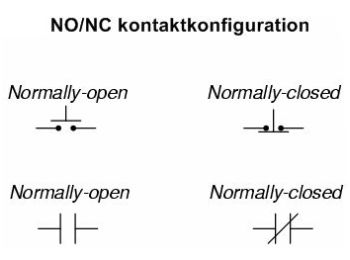

- Type: NO (normally open)
- Materiale: ABS + PC-legering (anti-brandbart PC-hus, PA66)
- Farve: Hvid

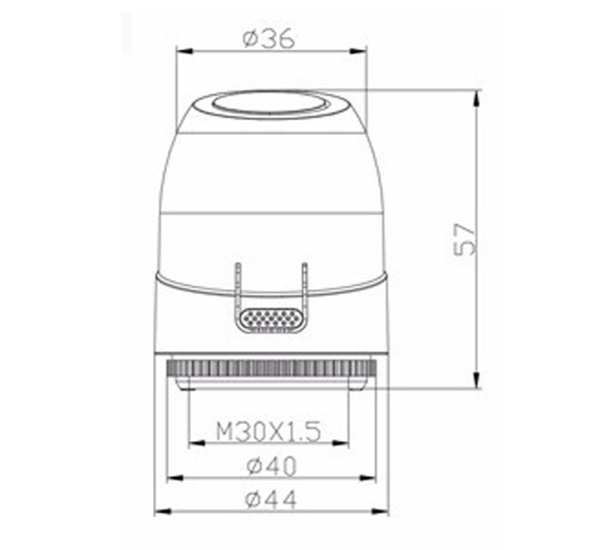

- Forskruning: M30
- Kabellængde: Ca. 90cm
- Spænding: 230Vac
- Strømforbrug: 2W
- Aktiveringstid: 3-5 min
- IP-rating: IP54
- Operationel temperatur: -25°C ~60°C
Thermal actuators are very common in floor heating systems where the actuator is installed on the floor heating manifolds and is remotely controlled by room thermostats to open or close the valve for individual circuits/loops. This actuator is NO (normally open).
Specifications:
- Type: NO (normally open)
- Material: ABS + PC Alloy (anti-flammable PC housing, PA66)
- Color: White
- Cap Nut: M30
- Cable length: Approx. 90cm
- Voltage: 230Vac
- Power Consumption: 2W
- Running Time: 3-5min
- IP-rating: IP54
- Ambient Temperature: -25°C ~ 60°C
