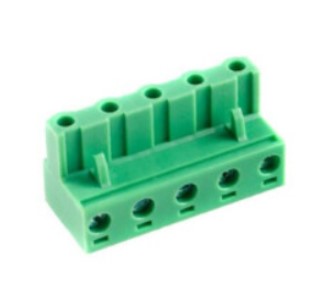

Indstik Skrueterminal - 5P hun, 7,62mm 300V/15A
Varenr:
H60378
EAN:
5705412603782
Tekniske detaljer:
- Stiktype: Skrueterminalstik
- Kontaktafstand: 7,62mm
- Antal ben: 5
- Benkonfiguration: 1x5
- Orientering: lige
- Køn: Hun
- Mekanisk montage: til kabel
- Elektrisk montage: Skrueterminal
- Maks. trådtværsnit: 4,0mm²
- Farve: Grøn
- Låsesystem: Friktionslås
- Mærkespænding: 300V
- Mærkestrøm: 15A
- Antændelighedsklasse: UL94V-0
- Operationel temperatur: -40...105°C
- Højde: 15,2mm
- Dybde: 18mm
- Afisoleret trådlængde: 8,35mm
Specifications:
- Type of connector: pluggable terminal block
- Contacts pitch: 7.62mm
- Number of ways: 5
- Type of pin configuration: 1x5
- Spatial orientation: straight
- Connector: plug
- Kind of connector: female
- Mechanical mounting: for cable
- Electrical mounting: screw terminal
- Wire cross section: 4.0mm2
- Colour: green
- Locking system: latch
- Rated voltage: 300V
- Current rating: 15A
- Flammability rating: UL94V-0
- Operating temperature: -40...105°C
- Height: 15.2mm
- Depth: 18mm
- Stripped wire length: 8,35mm
